306.0510.02 AS45
Insert
Part number 306051002AS45
HORN Insert 306.0510.02 AS45 for Gewinden

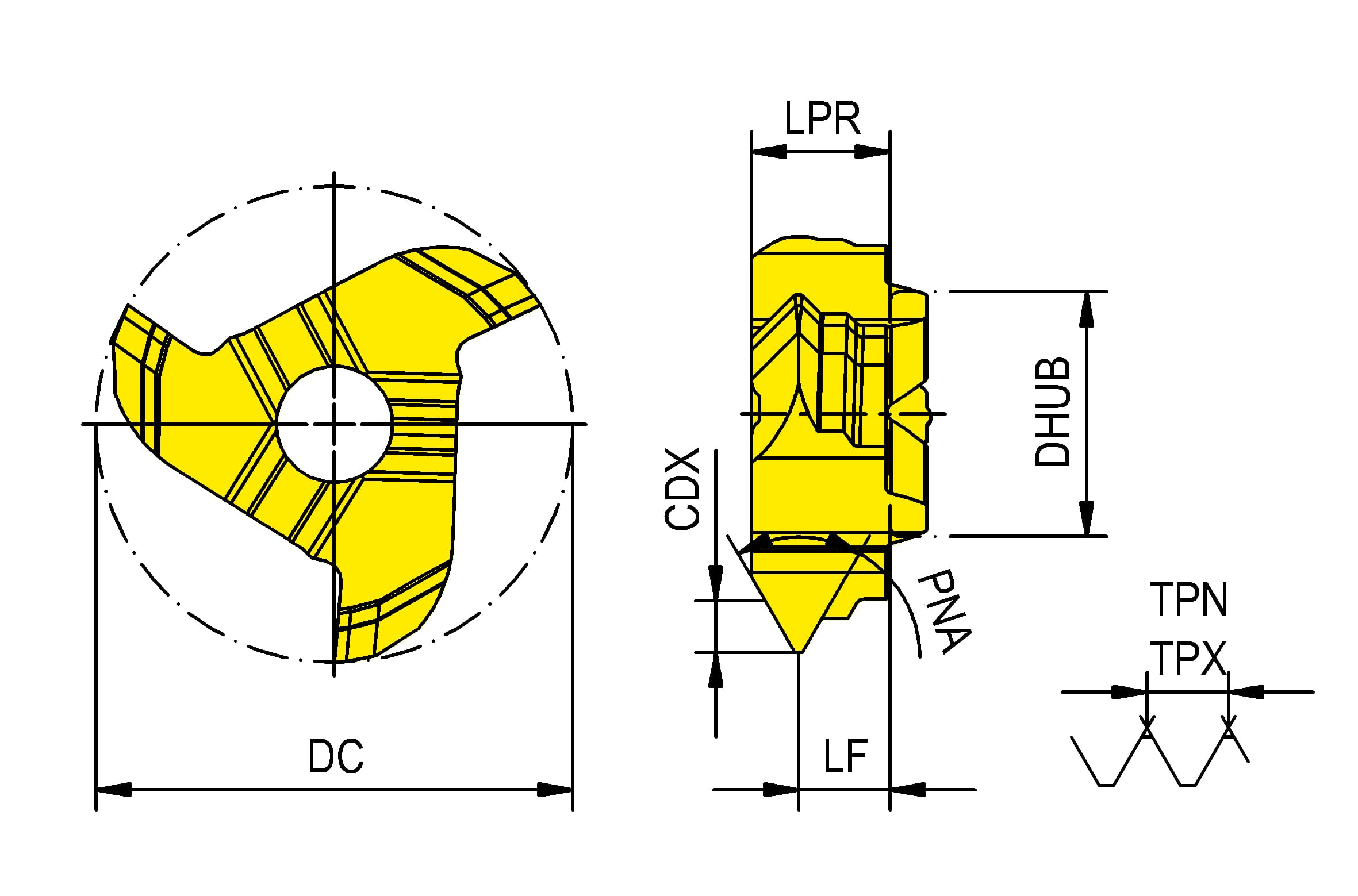

Please note:Technical instructions
Profile included angle (PNA)
60 °
Thred pitch maximum (TPX)
1 mm
Thread pitch minimum (TPN)
1 mm
Protruding length (LPR)
3.4 mm
Functional length (LF)
2.5 mm
hub diameter (DHUB)
6 mm
Cutting diameter (DC)
11.7 mm
Cutting depth maximum (CDX)
0.55 mm
| Downloads | |
|---|---|
| 306_0510_02_AS45-DIN.XML | Download |
| 306_0510_02_AS45-STP.STP | Download |
| 306_0510_02_AS45-ISO.XML | Download |
| 306_0510_02_AS45-DXF.DXF | Download |
| Download all files | |
