SH117.2432.30.1.12.IK

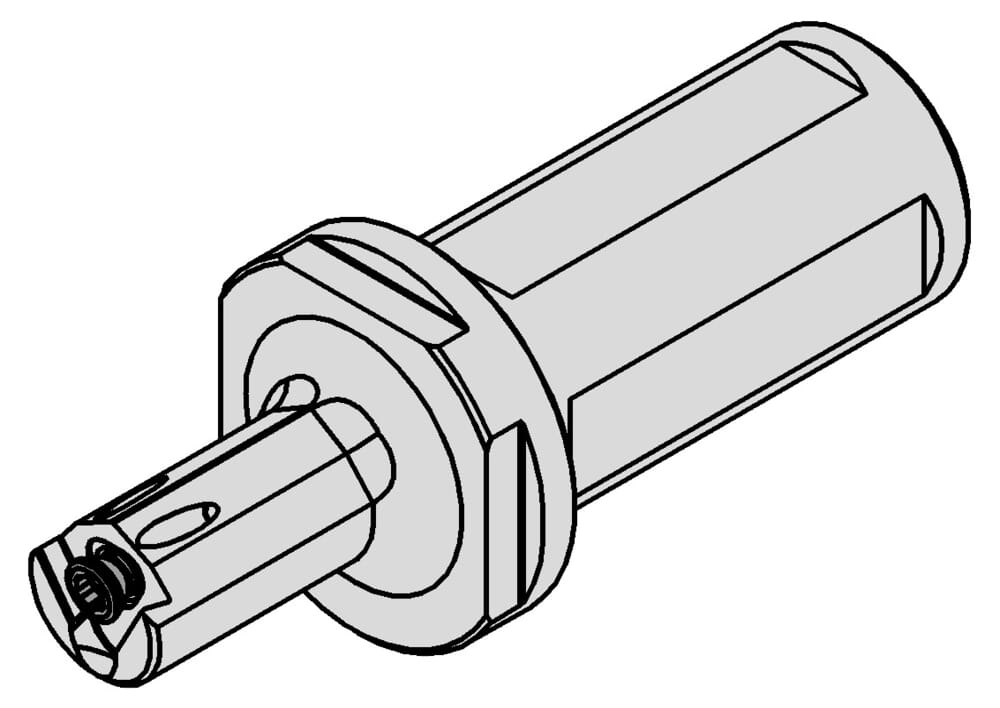

Broaching tool holder coolant through
Part number SH117243230112IK
HORN Broaching tool holder coolant through SH117.2432.30.1.12.IK for Broaching
Please note:Technical instructions
DIN_CCTWS
HORN-117M21050N
eclass-shortcut
21-18-10-90
Form (Form)
M
ISO_CCTMS
ZYL24G3200$$$$
DIN_CCTMS
ZYL03202415
Katalog_CCTWS
117M205
Outcropping, neck, working length (l2)
30 mm
ISO_CCTWS
HORN117M21050N$$$$$
Peak height (a)
22 mm
Clamping, shank diameter (d)
32 mm
Minimum drilling diameter (Dmin)
24.3 mm
Length from bore (l)
43 mm
Height clamping surface(s) (h)
30 mm
Total length (including cutting insert) (l1)
103 mm
Adjustment dimension center to cutting edge (f1)
11.3 mm
| Downloads | |
|---|---|
| SH117_2432_30_1_12_IK-DXF.DXF | Download |
| SH117_2432_30_1_12_IK-STP.STP | Download |
| SH117_2432_30_1_12_IK-ISO.XML | Download |
| SH117_2432_30_1_12_IK-DIN.XML | Download |
| Download all files | |
