SH117.1425.2.08.IK
Toolholder
Part number SH1171425208IK

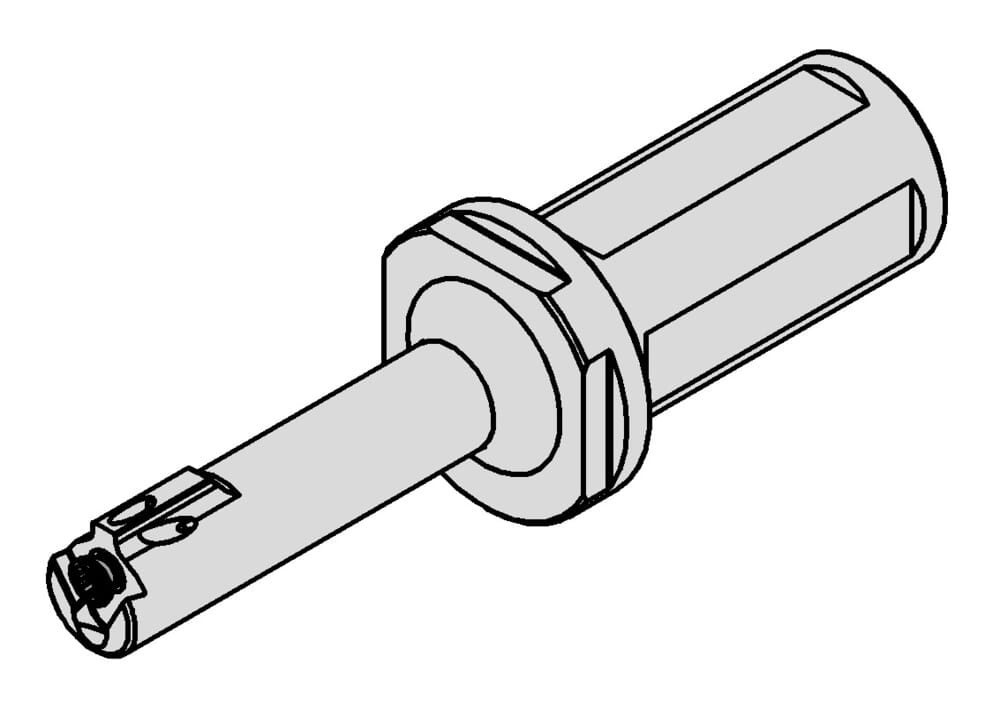

HORN Toolholder SH117.1425.2.08.IK for Broaching
Please note:Technical instructions
Clamping, shank diameter (d)
25 mm
Form (Form)
F
ISOCCTMS
ZYL24G2500$$$$
DIN_CCTMS
ZYL02502415
Katalog_CCTWS
117F805
DIN_CCTWS
HORN-117F81050N
ISOCCTWS
HORN117F81050N$$$$$
eclass-shortcut
21-18-10-90
Minimum drilling diameter (Dmin)
14 mm
Length from bore (l)
52 mm
Height clamping surface(s) (h)
23 mm
Total length (including cutting insert) (l1)
102 mm
Adjustment dimension center to cutting edge (f1)
9.6 mm
Outcropping, neck, working length (l2)
40 mm
| Downloads | |
|---|---|
| SH117_1425_2_08_IK-DXF.DXF | Download |
| SH117_1425_2_08_IK-STP.STP | Download |
| SH117_1425_2_08_IK-ISO.XML | Download |
| SH117_1425_2_08_IK-DIN.XML | Download |
| Download all files | |
