SH117.5040.4.20.IK
Toolholder
Part number SH1175040420IK

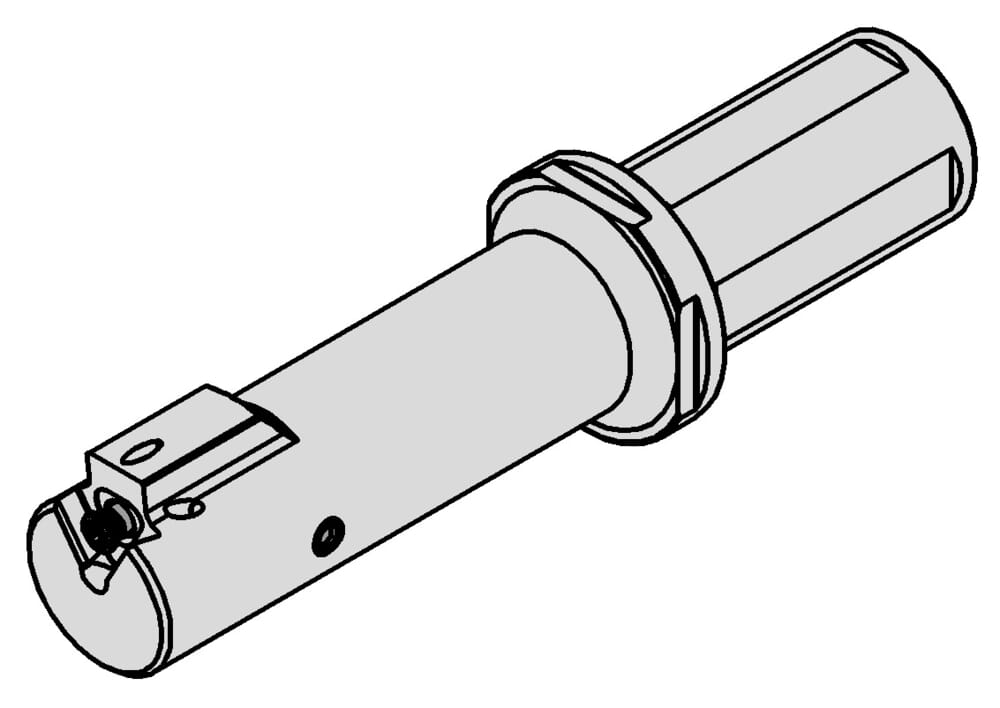

HORN Toolholder SH117.5040.4.20.IK for Broaching
Please note:Technical instructions
Minimum drilling diameter (Dmin)
50 mm
Form (Form)
I
ISOCCTMS
ZYL24G4000$$$$
DIN_CCTMS
ZYL04002415
Katalog_CCTWS
117I005
DIN_CCTWS
HORN-117I01050N
ISOCCTWS
HORN117I01050N$$$$$
Clamping, shank diameter (d)
40 mm
Length from bore (l)
215 mm
Height clamping surface(s) (h)
38 mm
Total length (including cutting insert) (l1)
295 mm
Adjustment dimension center to cutting edge (f1)
26.5 mm
Outcropping, neck, working length (l2)
200 mm
| Downloads | |
|---|---|
| SH117_5040_4_20_IK-DXF.DXF | Download |
| SH117_5040_4_20_IK-STP.STP | Download |
| SH117_5040_4_20_IK-ISO.XML | Download |
| SH117_5040_4_20_IK-DIN.XML | Download |
| Download all files | |
