R105.VPM3.2.3 TH35

Insert

GEWINDE_METRISCH.EPS IK_GENERELL.EPS GEWINDE_VOLLPROFIL.EPS GEWINDE_INNEN.EPS

Part number R105VPM323TH35

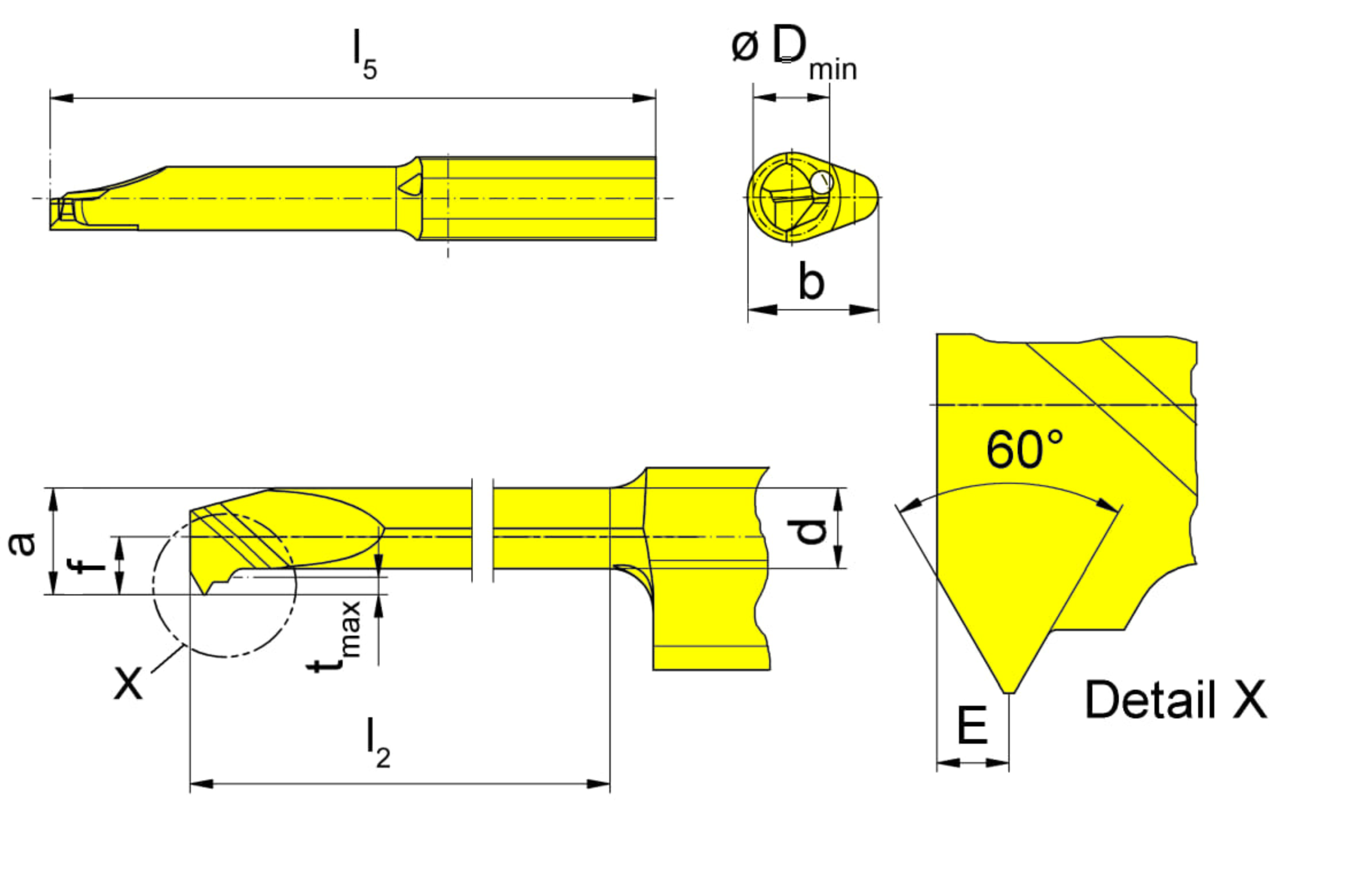

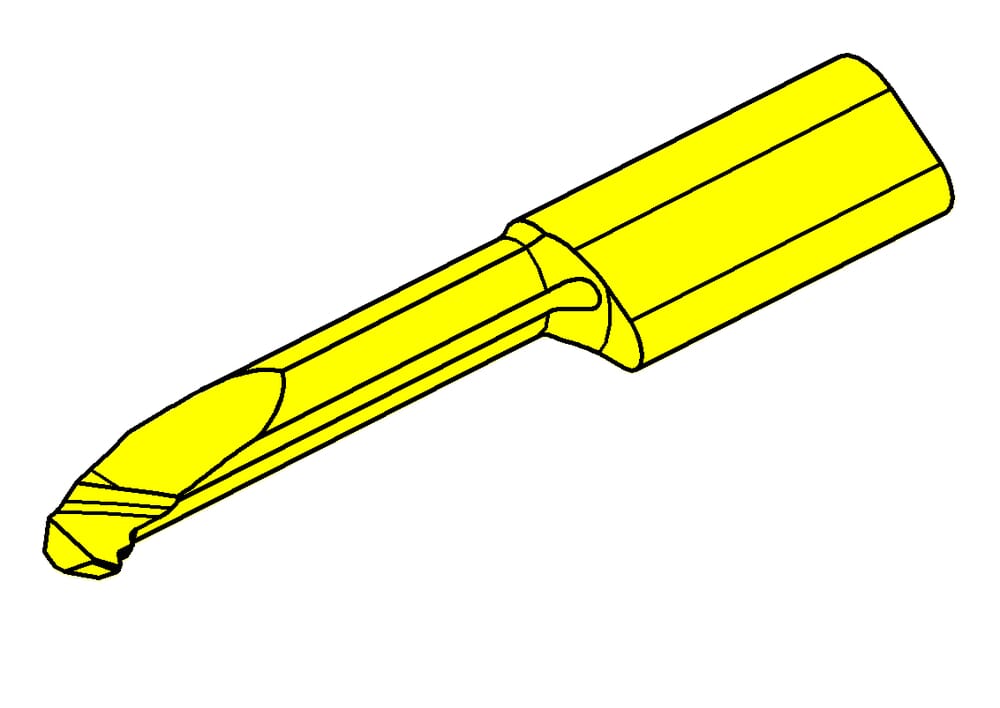

HORN Insert R105.VPM3.2.3 TH35 for Gewinden

Please note:Technical instructions

Neck diameter (d)
1.65 mm
Pitch (P)
0.5 mm
Smallest bore diameter (Dmin)
2.4 mm
Setting length (E)
0.3 mm
Cutting insert width (a)
2.2 mm
Setting range radial (f)
1.4 mm
Neck length (l2)
9 mm
Katalog_SSC
105123
ISO_SSC
HORN105123$95N$$$$$
Width of blank (b)
5.9 mm
eclass-shortcut
21-18-20-11
Cutting insert total length (l5)
25 mm
number-of-teeth
1 St.
