RH100.2525.3.33.IK
Toolholder
Part number RH1002525333IK

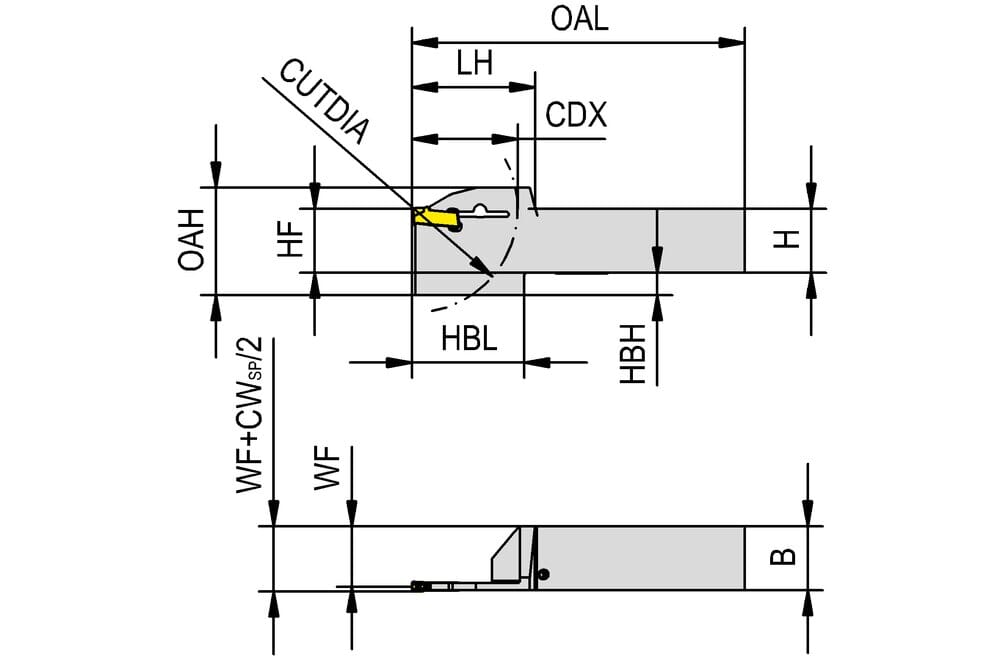

HORN Toolholder RH100.2525.3.33.IK for Turning
Please note:Technical instructions
Head underbuild length (HBL)
35 mm
Head base height (HBH)
7 mm
Funktional width (WF)
23.85 mm
Overall length (OAL)
119 mm
Overall heigth (OAH)
38.6 mm
Head length (LH)
38.5 mm
Functional height (HF)
25 mm
Shank height (H)
25 mm
Work piece parting diameter maximum (CUTDIA)
65 mm
Cutting depth maximum (CDX)
33 mm
Shank width (B)
25 mm
| Downloads | |
|---|---|
| RH100_2525_3_33_IK-DXF.DXF | Download |
| RH100_2525_3_33_IK-STP.STP | Download |
| RH100_2525_3_33_IK-ISO.XML | Download |
| RH100_2525_3_33_IK-DIN.XML | Download |
| Download all files | |
