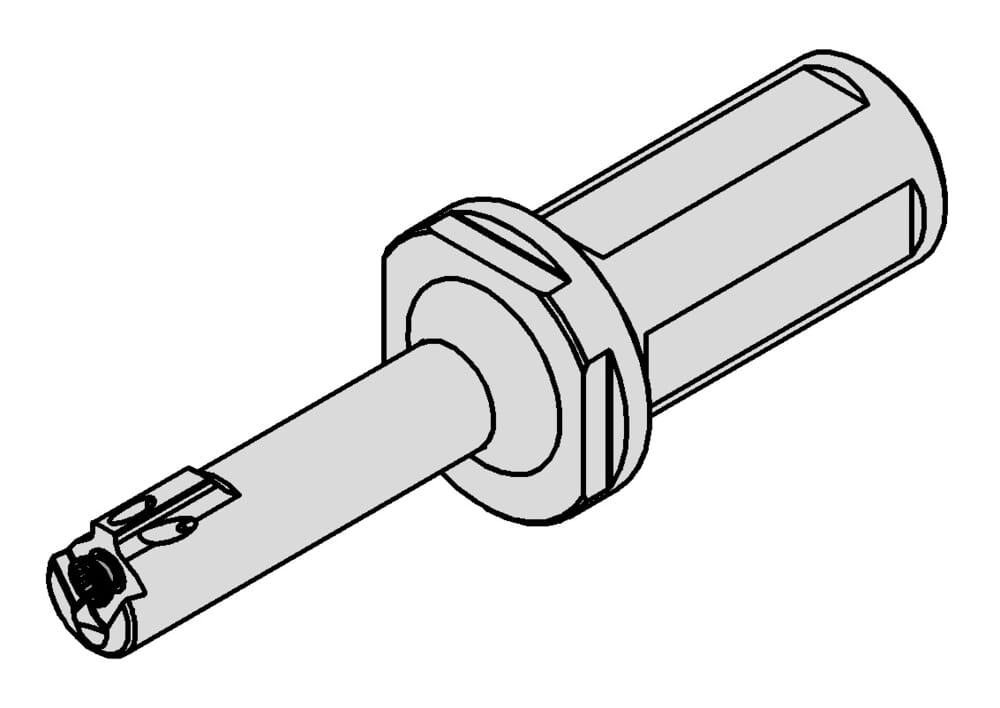

SH117.0025.1.10.IK

Broaching tool holder coolant through

Part number SH1170025110IK

HORN Broaching tool holder coolant through SH117.0025.1.10.IK for Broaching

Clamping, shank diameter (d)

25 mm

Form (Form)

ISOCCTMS

ZYL24G2500$$$$

DIN_CCTMS

ZYL02502415

Katalog_CCTWS

117B005

DIN_CCTWS

HORN-117B01050N

ISOCCTWS

HORN117B01050N$$$$$

eclass-shortcut

21-18-10-90

Minimum drilling diameter (Dmin)

22 mm

Length from bore (l)

63 mm

Height clamping surface(s) (h)

23 mm

Total length (including cutting insert) (l1)

113 mm

Adjustment dimension center to cutting edge (f1)

12 mm

Outcropping, neck, working length (l2)

50 mm
