SH117.0032.3.16.IK
Broaching tool holder coolant through
Part number SH1170032316IK

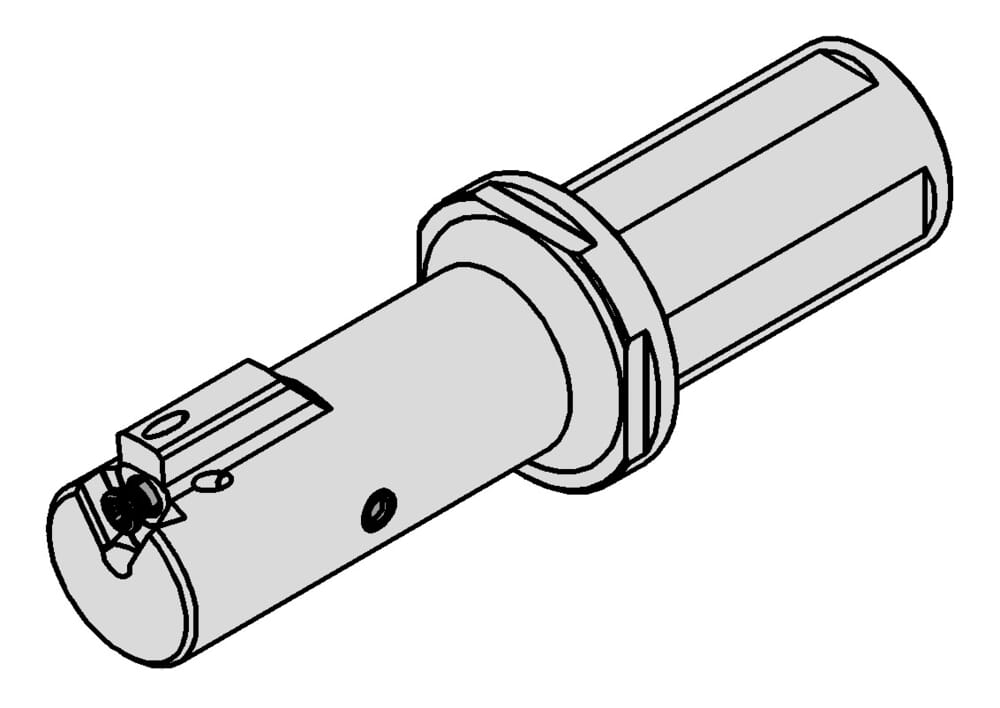

HORN Broaching tool holder coolant through SH117.0032.3.16.IK for Broaching
Please note:Technical instructions
Clamping, shank diameter (d)
32 mm
Form (Form)
D
ISOCCTMS
ZYL24G3200$$$$
DIN_CCTMS
ZYL03202415
Katalog_CCTWS
117D605
DIN_CCTWS
HORN-117D61050N
ISOCCTWS
HORN117D61050N$$$$$
eclass-shortcut
21-18-10-90
Minimum drilling diameter (Dmin)
38 mm
Length from bore (l)
113 mm
Height clamping surface(s) (h)
30 mm
Total length (including cutting insert) (l1)
173 mm
Adjustment dimension center to cutting edge (f1)
22 mm
Outcropping, neck, working length (l2)
100 mm
| Downloads | |
|---|---|
| SH117_0032_3_16_IK-STP.STP | Download |
| SH117_0032_3_16_IK-ISO.XML | Download |
| SH117_0032_3_16_IK-DIN.XML | Download |
| SH117_0032_3_16_IK-DXF.DXF | Download |
| Download all files | |
