SH117.1425.30.1.08.IK

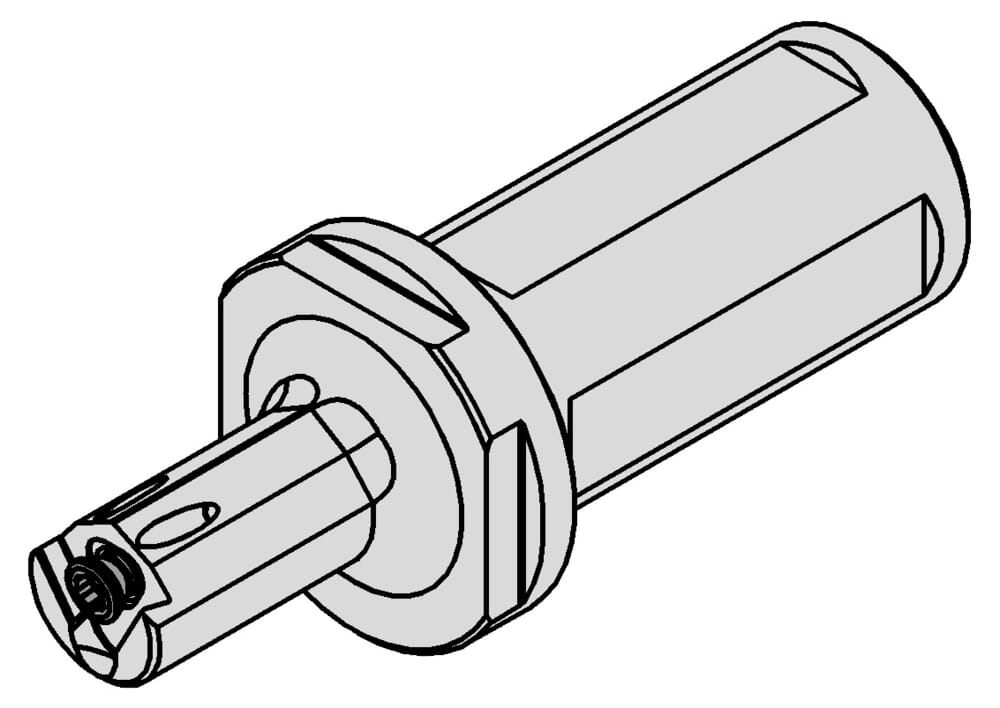

Broaching tool holder coolant through

Part number SH117142530108IK

HORN Broaching tool holder coolant through SH117.1425.30.1.08.IK for Broaching

Please note:Technical instructions

Clamping, shank diameter (d)

25 mm

Form (Form)

ISOCCTMS

ZYL24G2500$$$$

DIN_CCTMS

ZYL02502415

Katalog_CCTWS

117K805

DIN_CCTWS

HORN-117K81050N

ISOCCTWS

HORN117K81050N$$$$$

eclass-shortcut

21-18-10-90

Peak height (a)

13 mm

Minimum drilling diameter (Dmin)

14.2 mm

Length from bore (l)

33 mm

Height clamping surface(s) (h)

23 mm

Total length (including cutting insert) (l1)

83 mm

Adjustment dimension center to cutting edge (f1)

6.75 mm

Outcropping, neck, working length (l2)

20 mm

Downloads
SH117_1425_30_1_08_IK-DXF.DXF	Download
SH117_1425_30_1_08_IK-STP.STP	Download
SH117_1425_30_1_08_IK-ISO.XML	Download
SH117_1425_30_1_08_IK-DIN.XML	Download
Download all files
