Broaching tool holder coolant through
Part number SH1173032216IK

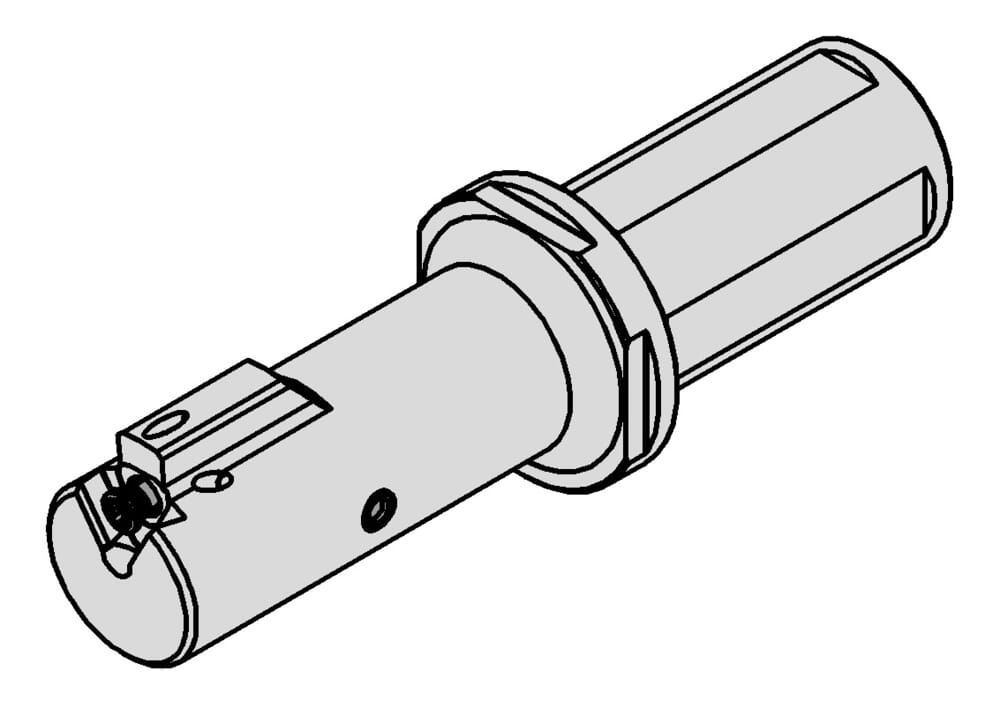

HORN Broaching tool holder coolant through SH117.3032.2.16.IK for Broaching
Please note:Technical instructions
Katalog_CCTWS
117C605
eclass-shortcut
21-18-10-90
Form (Form)
C
ISO_CCTMS
ZYL24G3200$$$$
DIN_CCTMS
ZYL03202415
Outcropping, neck, working length (l2)
75 mm
DIN_CCTWS
HORN-117C61050N
ISO_CCTWS
HORN117C61050N$$$$$
Clamping, shank diameter (d)
32 mm
Minimum drilling diameter (Dmin)
30 mm
Length from bore (l)
88 mm
Height clamping surface(s) (h)
30 mm
Total length (including cutting insert) (l1)
148 mm
Adjustment dimension center to cutting edge (f1)
16.5 mm
