306.0720.01 TN35
Inserts
Part number 306072001TN35
HORN Inserts 306.0720.01 TN35 for Gewinden
Please note:Technical instructions

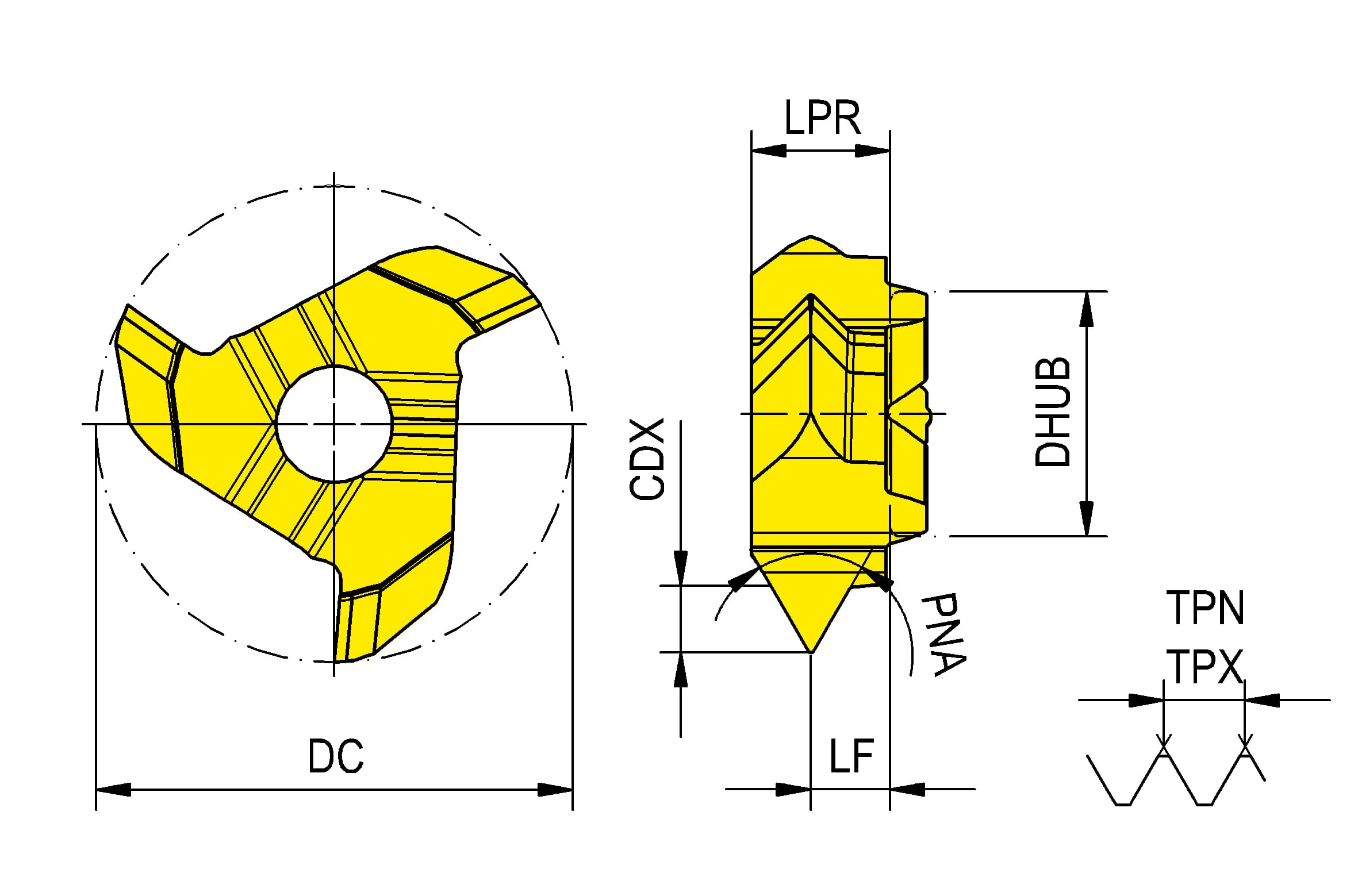

Profile included angle (PNA)
60 °
Thred pitch maximum (TPX)
2 mm
Thread pitch minimum (TPN)
1 mm
Protruding length (LPR)
3.4 mm
Functional length (LF)
1.95 mm
hub diameter (DHUB)
6 mm
Cutting diameter (DC)
11.7 mm
Cutting depth maximum (CDX)
1.3 mm
