H100.2602.02
Toolholders
Part number H100260202

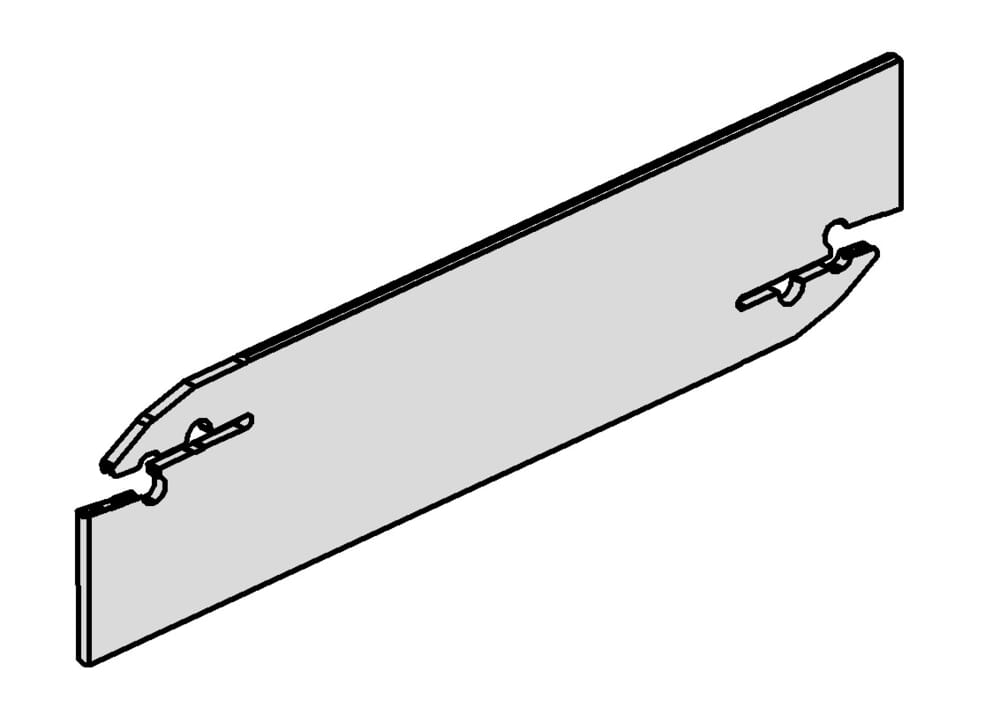

HORN Toolholders H100.2602.02 for Turning
Please note:Technical instructions
Katalog_CCTWS
100028
eclass-shortcut
21-18-10-04
Plating seat size (Größe)
2
ISO_CCTMS
PMU01C0260$$$$
DIN_CCTMS
PMU02600105

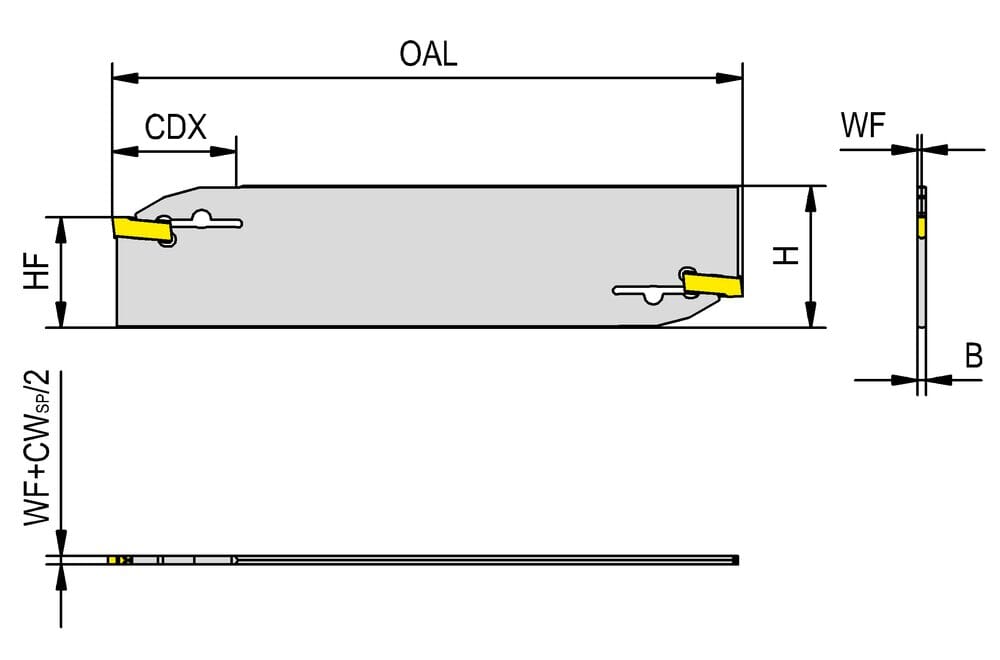

Width / thickness sword (b)
1.9 mm
DIN_CCTWS
HORN-100020058N
ISO_CCTWS
HORN100020058N$$$$$
clamping-range-max-met
2.8 mm
Peak height (h1)
21.4 mm
Maximum insertion depth (tmax)
37.5 mm
Head height (h)
26 mm
Total length (including cutting insert) (l1)
110 mm
Adjustment dimension (f1)
0.95 mm
| Downloads | |
|---|---|
| H100_2602_02.DXF | Download |
| H100_2602_02-STP.STP | Download |
| H100_2602_02-ISO.XML | Download |
| H100_2602_02-DIN.XML | Download |
| Download all files | |
