306.5519.02 TA45
Insert
Part number 306551902TA45
HORN Insert 306.5519.02 TA45 for Gewinden
Please note:Technical instructions

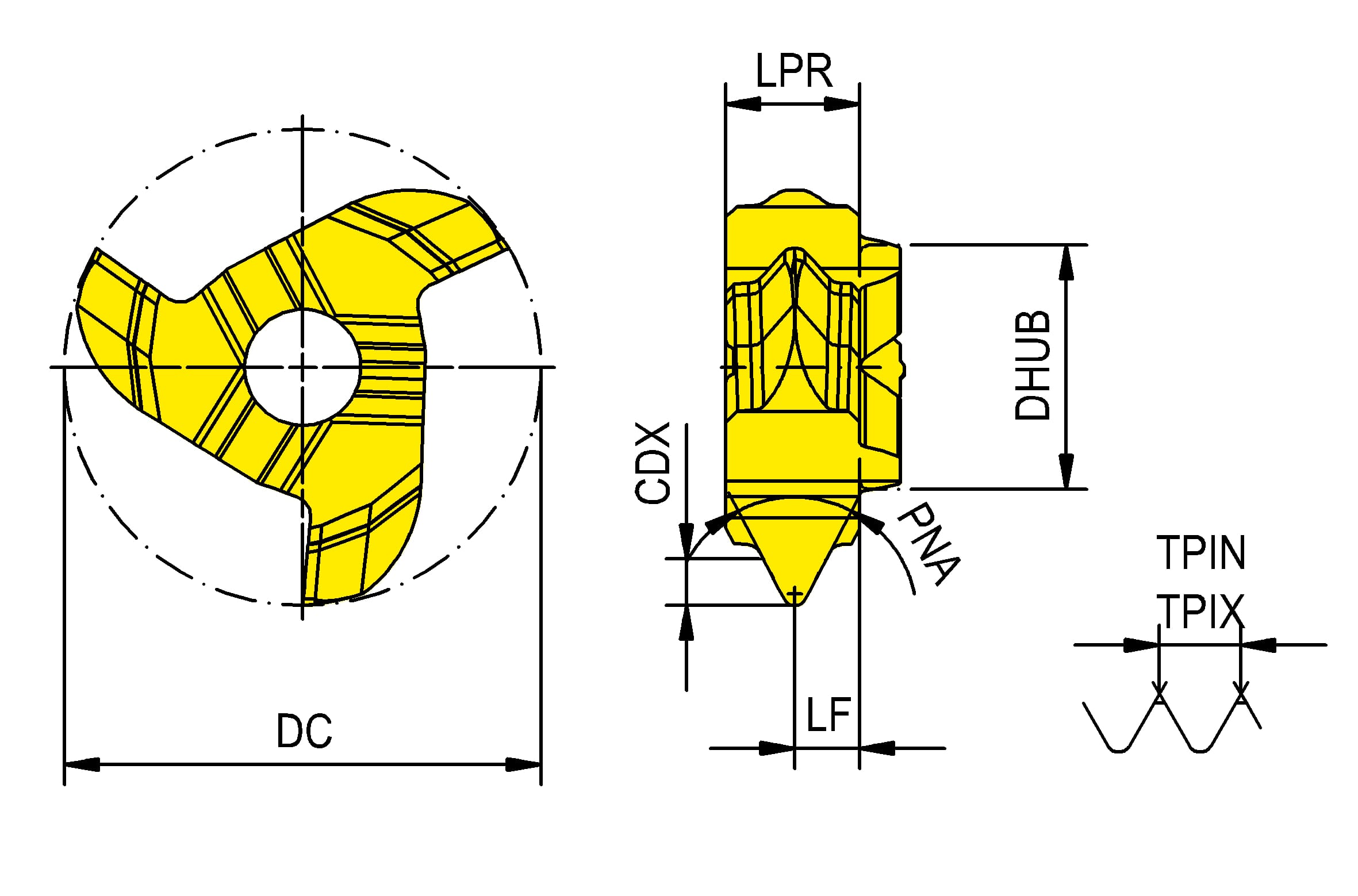

Profile included angle (PNA)
55 °
Threads per inch max. (TPIX)
19
Threads per inch min. (TPIN)
19
Protruding length (LPR)
3.4 mm
Functional length (LF)
2.2 mm
hub diameter (DHUB)
6 mm
Cutting diameter (DC)
11.7 mm
Cutting depth maximum (CDX)
0.87 mm
| Downloads | |
|---|---|
| 306_5519_02_TA45-ISO.XML | Download |
| 306_5519_02_TA45-DIN.XML | Download |
| 306_5519_02_TA45-DXF.DXF | Download |
| 306_5519_02_TA45-STP.STP | Download |
| Download all files | |
