H100.3203.8.03.IK
Toolholder
Part number H1003203803IK

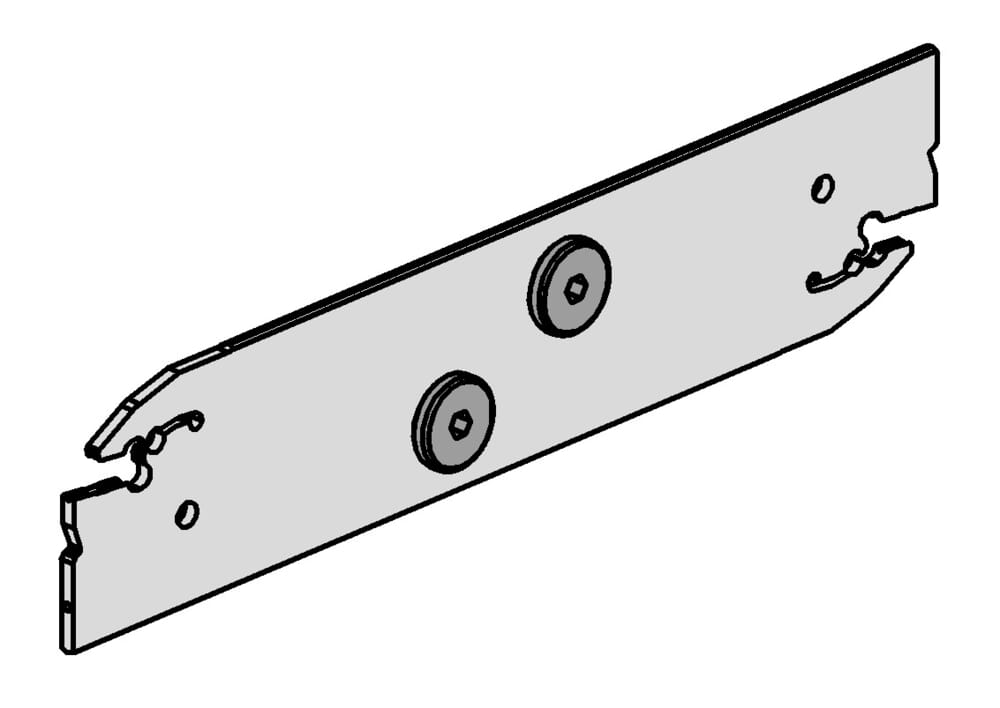

HORN Toolholder H100.3203.8.03.IK for Turning
Please note:Technical instructions
Maximum insertion depth (tmax)
60 mm
ISO_CCTMS
PMU01C0320$$$$
DIN_CCTMS
PMU03200115
Katalog_CCTWS
100039;100038
DIN_CCTWS
HORN-100030059N;HORN-100030058N
ISO_CCTWS
HORN100030059N$$$$$;HORN100030058N$$$$$
eclass-shortcut
21-18-10-04

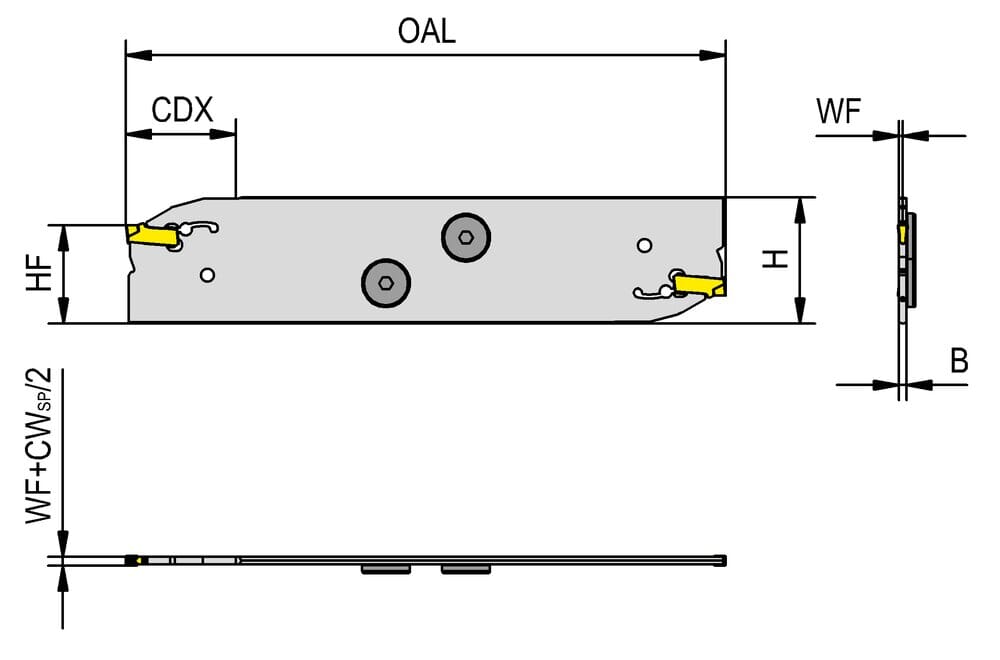

Peak height (h1)
24.8 mm
Head height (h)
32 mm
Size (Größe)
3
Total length (including cutting insert) (l1)
150 mm
Adjustment dimension (f1)
1.15 mm
Width / thickness sword (b)
2.3 mm
| Downloads | |
|---|---|
| H100_3203_8_03_IK-DXF.DXF | Download |
| H100_3203_8_03_IK-STP.STP | Download |
| H100_3203_8_03_IK-ISO.XML | Download |
| H100_3203_8_03_IK-DIN.XML | Download |
| Download all files | |
