S100.0300.E2 TF45
Inserts
Part number S1000300E2TF45

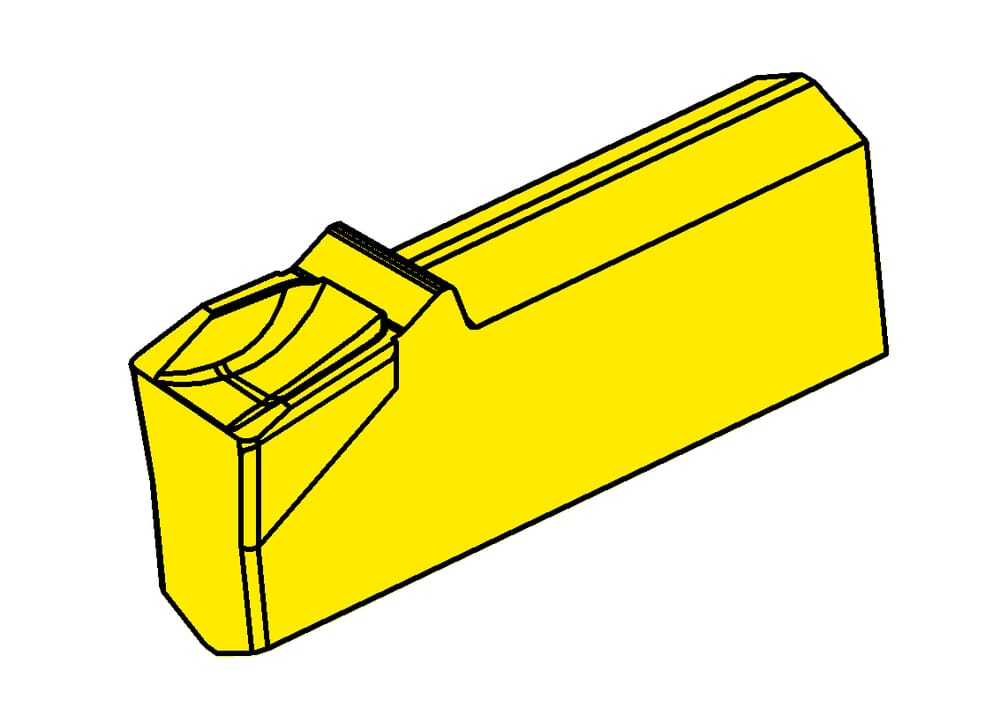

HORN Inserts S100.0300.E2 TF45 for Turning
Please note:Technical instructions

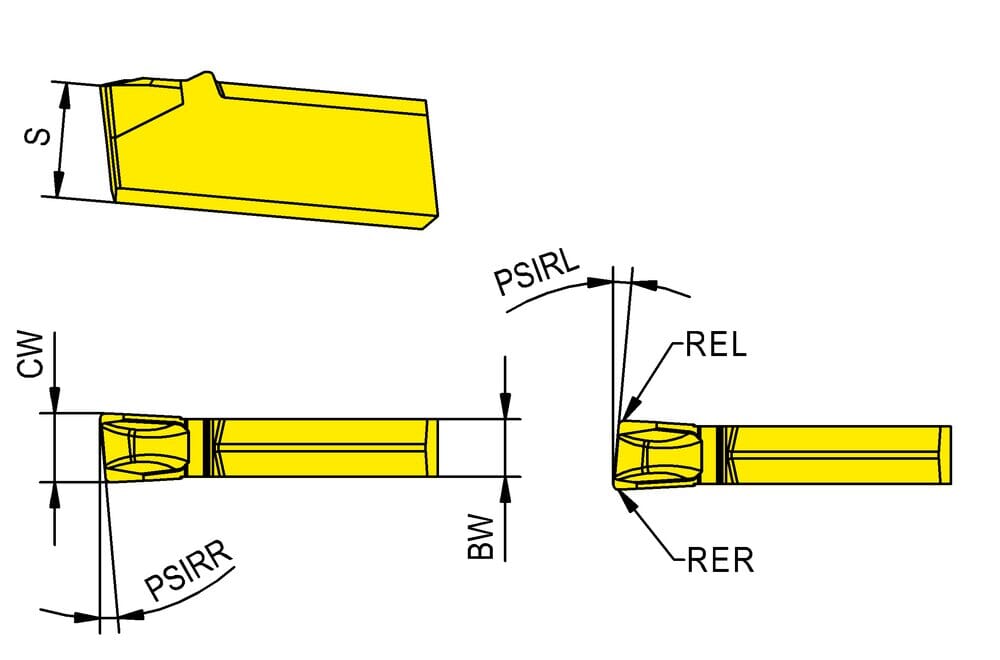

Parting-off chamfer (α)
0 °
eclass-shortcut
21-18-20-11
ISO_SSC
HORN100030058N$$$$$
Katalog_SSC
100038
Plating seat size (Größe)
3
Width of groove (w)
3 mm
Corner radius (r)
0.2 mm
| Downloads | |
|---|---|
| S100_0300_E2_TF45-DXF.DXF | Download |
| S100_0300_E2_TF45-STP.STP | Download |
| S100_0300_E2_TF45-ISO.XML | Download |
| S100_0300_E2_TF45-DIN.XML | Download |
| Download all files | |
