R108.0815.01 EG55
Insert
Part number R108081501EG55

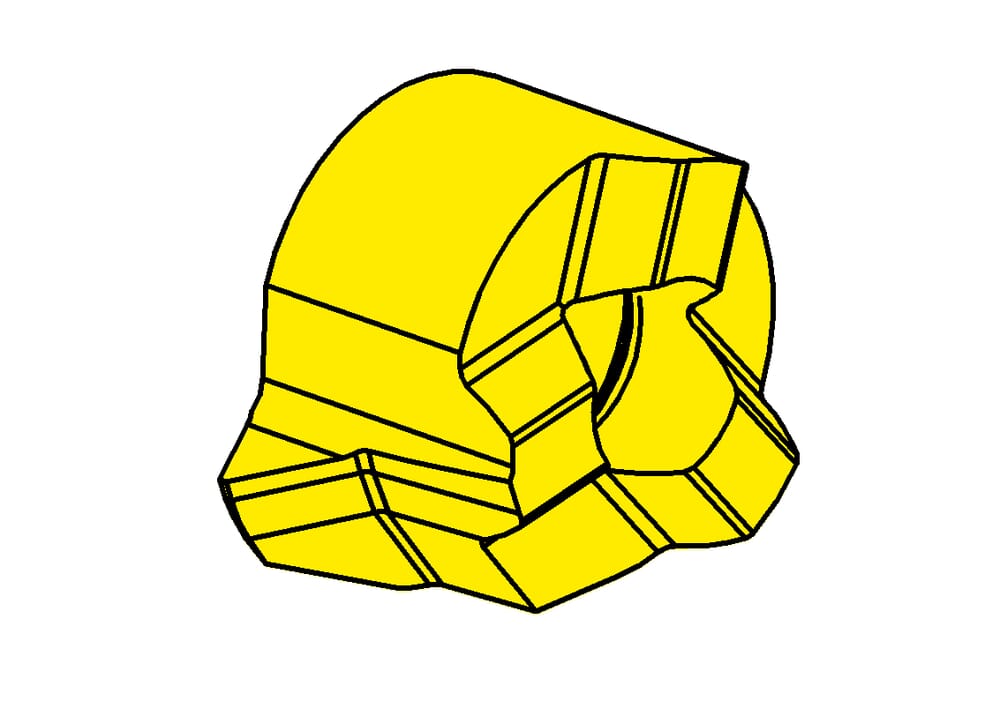

HORN Insert R108.0815.01 EG55 for Gewinden
Please note:Technical instructions

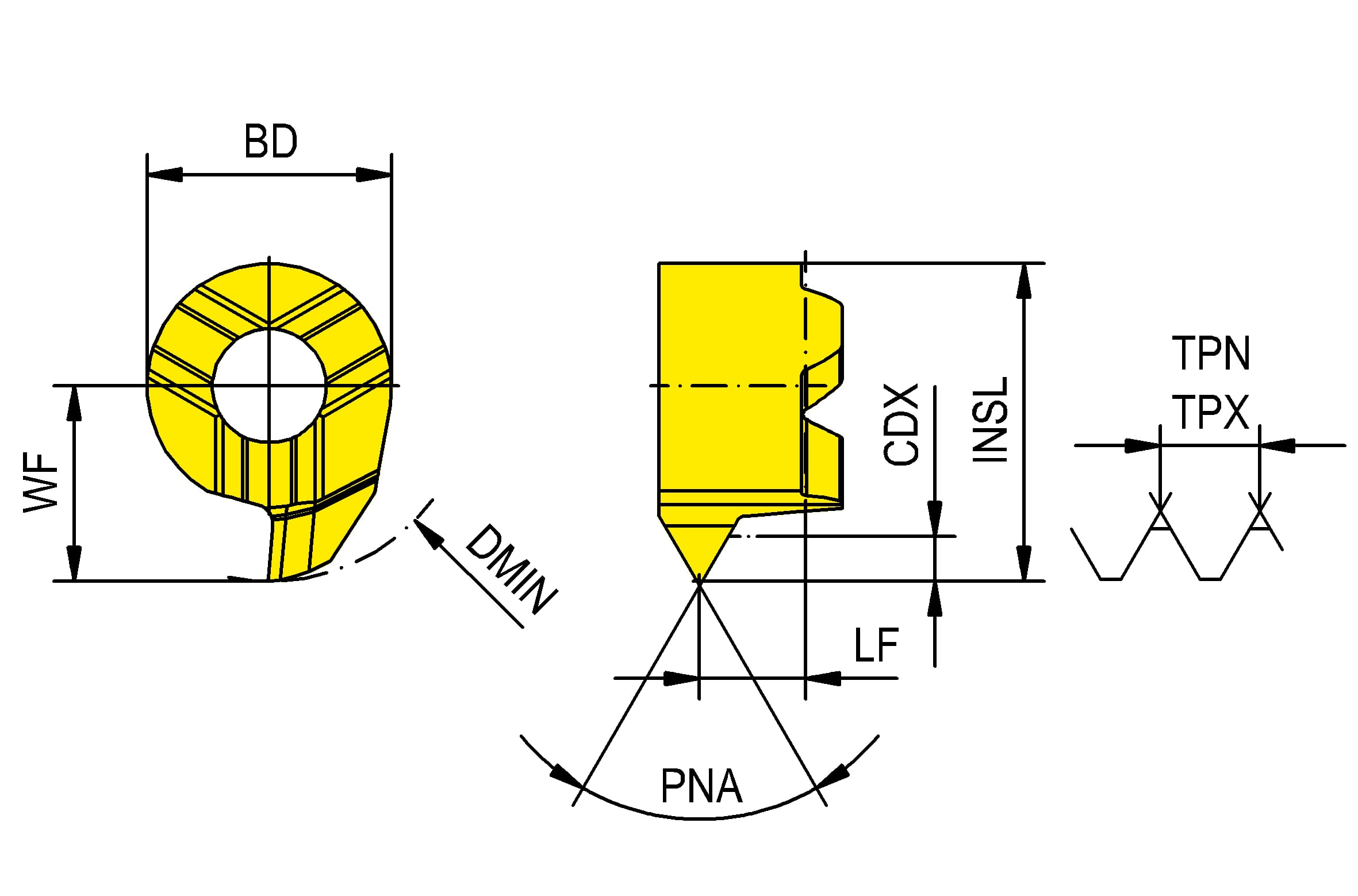

Cutting edge count (CEDC)
1
Profile included angle (PNA)
60 °
Funktional width (WF)
4.8 mm
Thred pitch maximum (TPX)
1.75 mm
Thread pitch minimum (TPN)
1.5 mm
Functional length (LF)
2.6 mm
Insert length (INSL)
7.8 mm
Minimum bore diameter (DMIN)
8 mm
Cutting depth maximum (CDX)
1 mm
Body diameter (BD)
6 mm
| Downloads | |
|---|---|
| R108_0815_01_EG55-DXF.DXF | Download |
| R108_0815_01_EG55-STP.STP | Download |
| R108_0815_01_EG55-ISO.XML | Download |
| R108_0815_01_EG55-DIN.XML | Download |
| Download all files | |
