S117.1200.03.14.B1 AN45

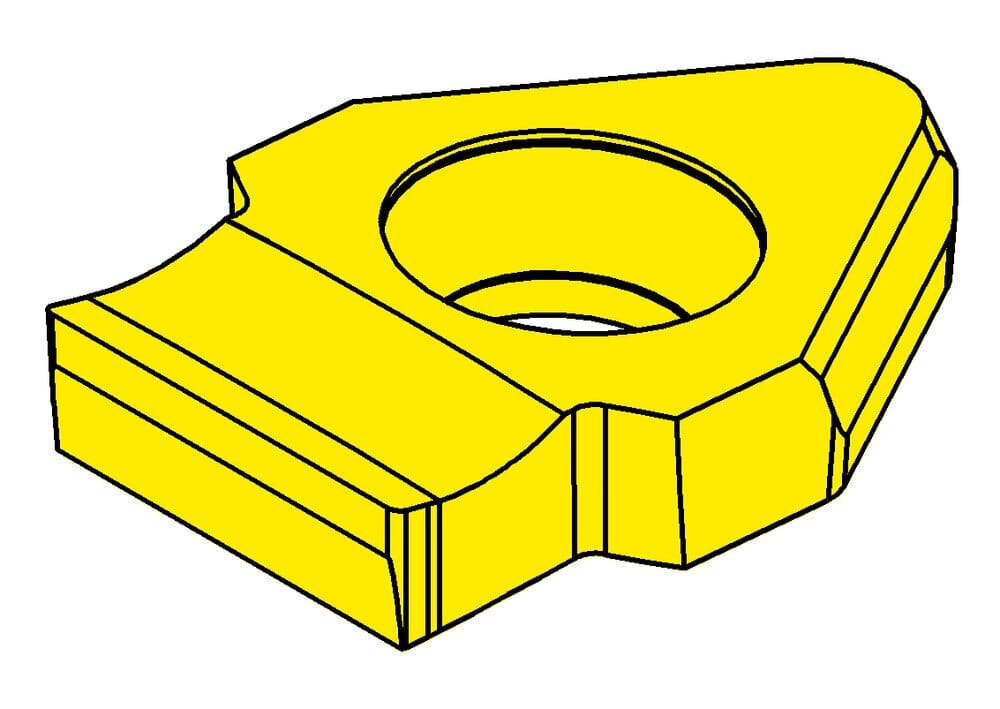

117 style broach insert - B1 geometry
Part number S11712000314B1AN45
HORN 117 style broach insert - B1 geometry S117.1200.03.14.B1 AN45 for Broaching
Please note:Technical instructions
Cutting width (w)
12.01 mm
Smallest bore diameter (Dmin)
38 mm
Total length (l)
20.7 mm
Corner radius (r)
0.3 mm
Nominal range (Nw)
12 mm
Form (Form)
D
Katalog_SSC
117D605
ISOSSC
HORN117D61050N$$$$$
eclass-shortcut
21-18-20-11
Cutting insert center from the middle (f)
11.2 mm
Maximum depth of groove (tmax)
5.9 mm
| Downloads | |
|---|---|
| S117_1200_03_14_B1_AN45-DXF.DXF | Download |
| S117_1200_03_14_B1_AN45-STP.STP | Download |
| S117_1200_03_14_B1_AN45-ISO.XML | Download |
| S117_1200_03_14_B1_AN45-DIN.XML | Download |
| Download all files | |
