S100.0200.WA2 K10
Insert
Part number S1000200WA2K10

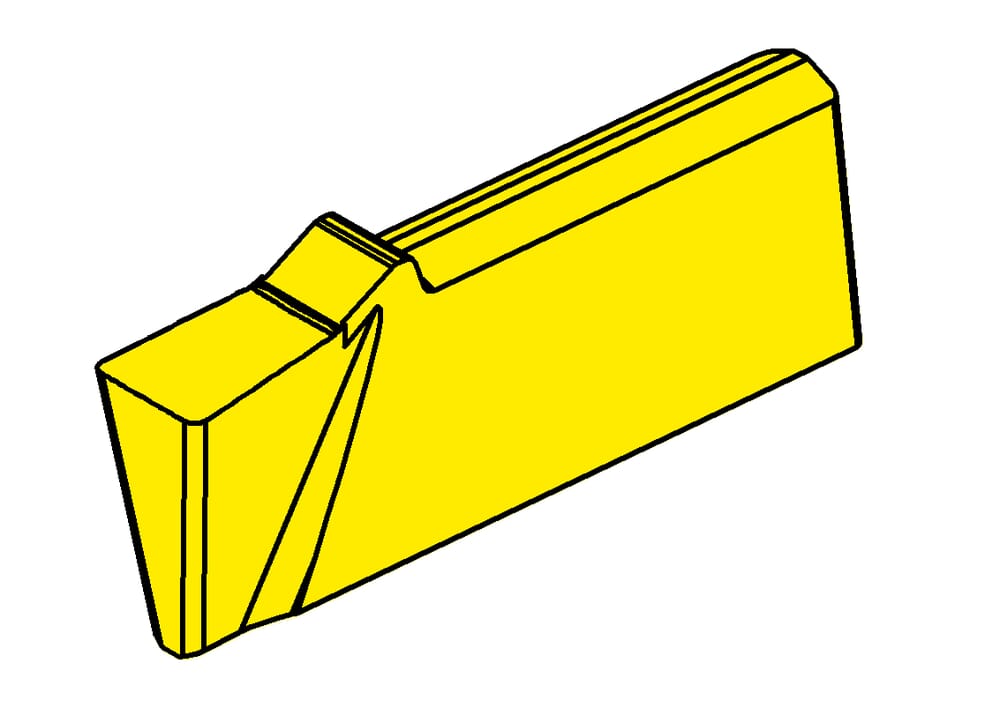

HORN Insert S100.0200.WA2 K10 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-11
ISO_SSC
HORN100010058N$$$$$
Katalog_SSC
100018
Plating seat size (Größe)
1

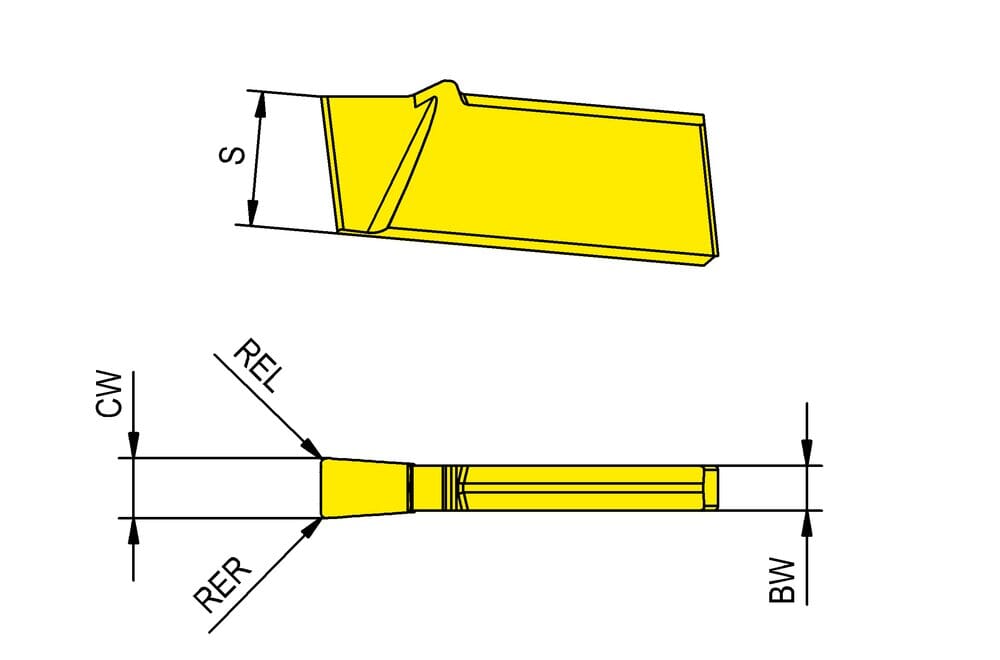

Width of groove (w)
2 mm
Corner radius (r)
0.2 mm
| Downloads | |
|---|---|
| S100_0200_WA2_K10-DXF.DXF | Download |
| S100_0200_WA2_K10-STP.STP | Download |
| S100_0200_WA2_K10-ISO.XML | Download |
| S100_0200_WA2_K10-DIN.XML | Download |
| Download all files | |
