S117.0497.02.08.B1 AN45

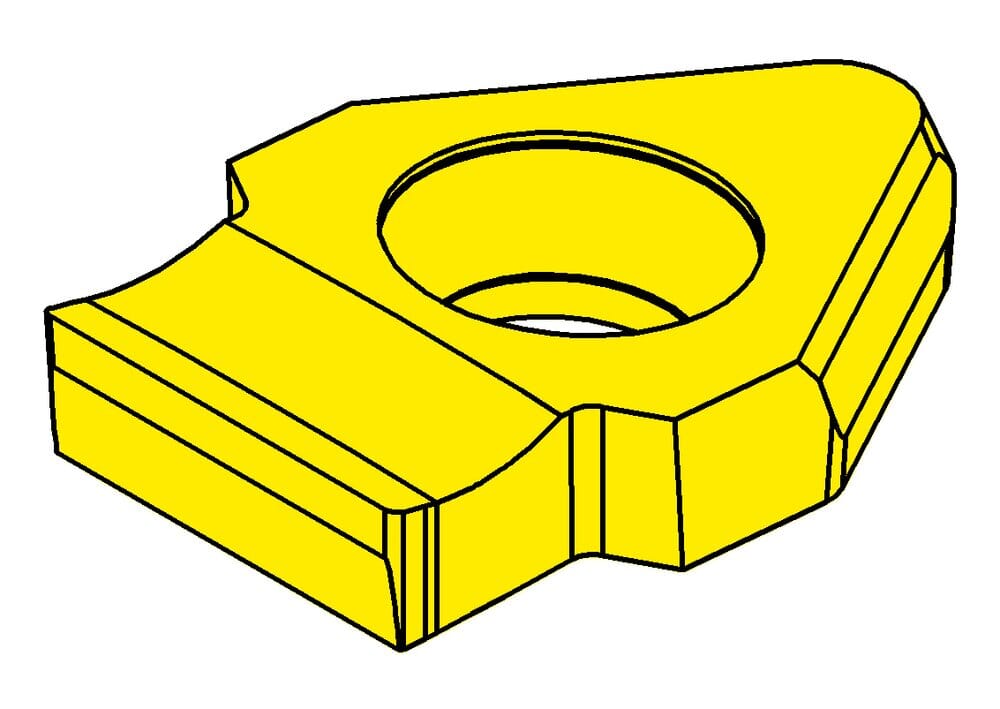

117 style broach insert - B1 geometry
Part number S11704970208B1AN45
HORN 117 style broach insert - B1 geometry S117.0497.02.08.B1 AN45 for Broaching
Please note:Technical instructions
Cutting width (w)
4.98 mm
Smallest bore diameter (Dmin)
14 mm
Total length (l)
13 mm
Corner radius (r)
0.2 mm
Nominal range (Nw)
5 mm
Form (Form)
F
Katalog_SSC
117F805
ISOSSC
HORN117F81050N$$$$$
eclass-shortcut
21-18-20-11
Cutting insert center from the middle (f)
6 mm
Maximum depth of groove (tmax)
2.9 mm
| Downloads | |
|---|---|
| S117_0497_02_08_B1_AN45-DIN.XML | Download |
| S117_0497_02_08_B1_AN45-DXF.DXF | Download |
| S117_0497_02_08_B1_AN45-STP.STP | Download |
| S117_0497_02_08_B1_AN45-ISO.XML | Download |
| Download all files | |
