R108.0815.01 MG12

Inserts

Part number R108081501MG12

HORN Inserts R108.0815.01 MG12 for Gewinden

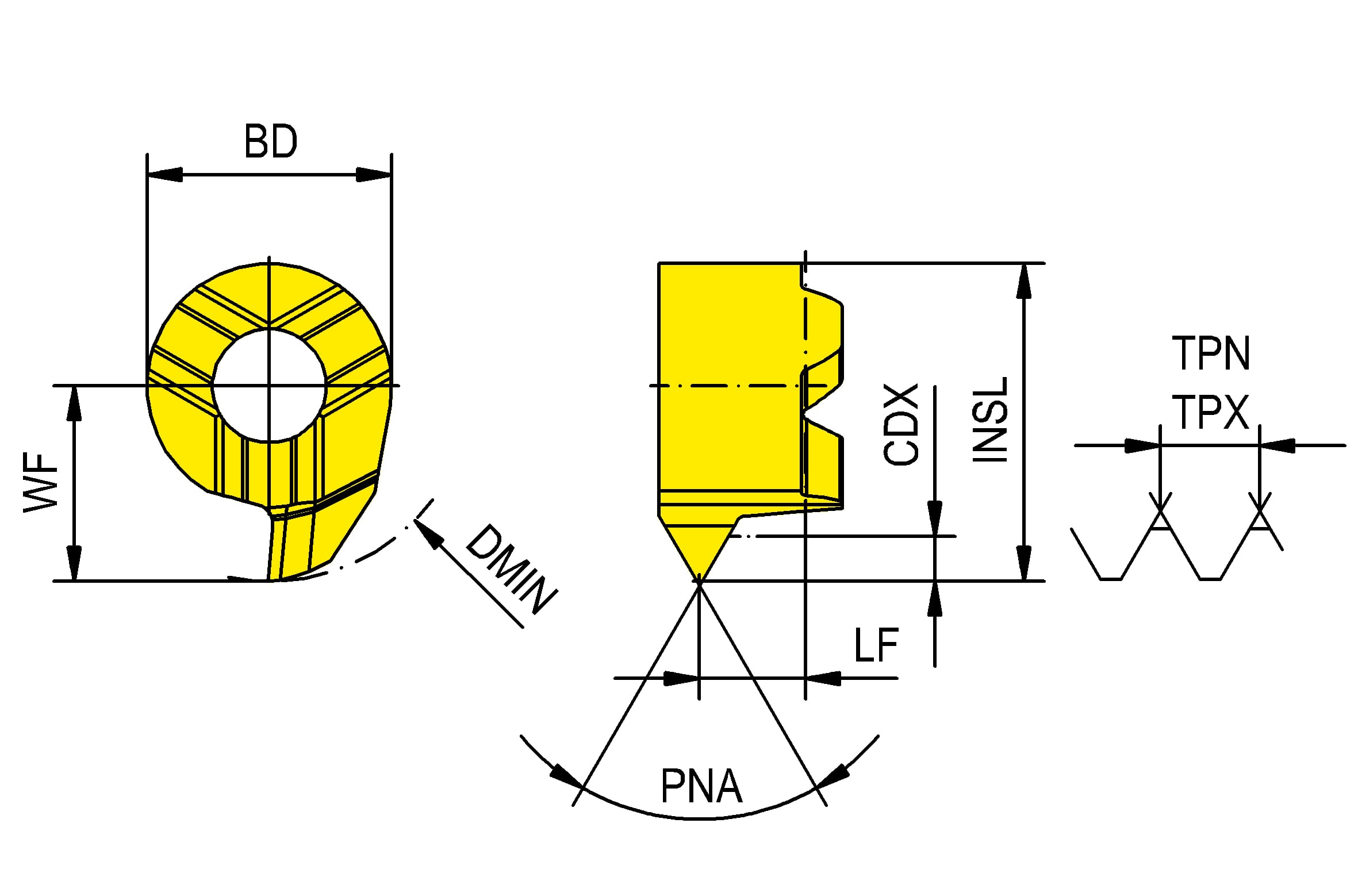

Tooth diameter, head diameter (d)

6 mm

Maximum pitch (Pmax)

1.75 mm

Pitch (P)

1.5 mm

Smallest bore diameter (Dmin)

8 mm

Cutting insert height, Cutting insert thickness (s)

3.6 mm

Setting length (E)

2.6 mm

Cutting diameter (Ds)

9.6 mm

Cutting insert width (a)

7.8 mm

Setting range radial (f)

4.8 mm

Katalog_SSC

306060R

ISO_SSC

HORN306060$84R$$$$$

eclass-shortcut

21-18-20-11

Number of teeth (Z)

1 St.
