RH100.2525.0.23.IK

Toolholder

ABSTECHEN_20210506_153854505.EPS AUSSEN_EINSTECHEN.EPS IK_VON_OBEN_UND_UNTEN.EPS
Part number RH1002525023IK

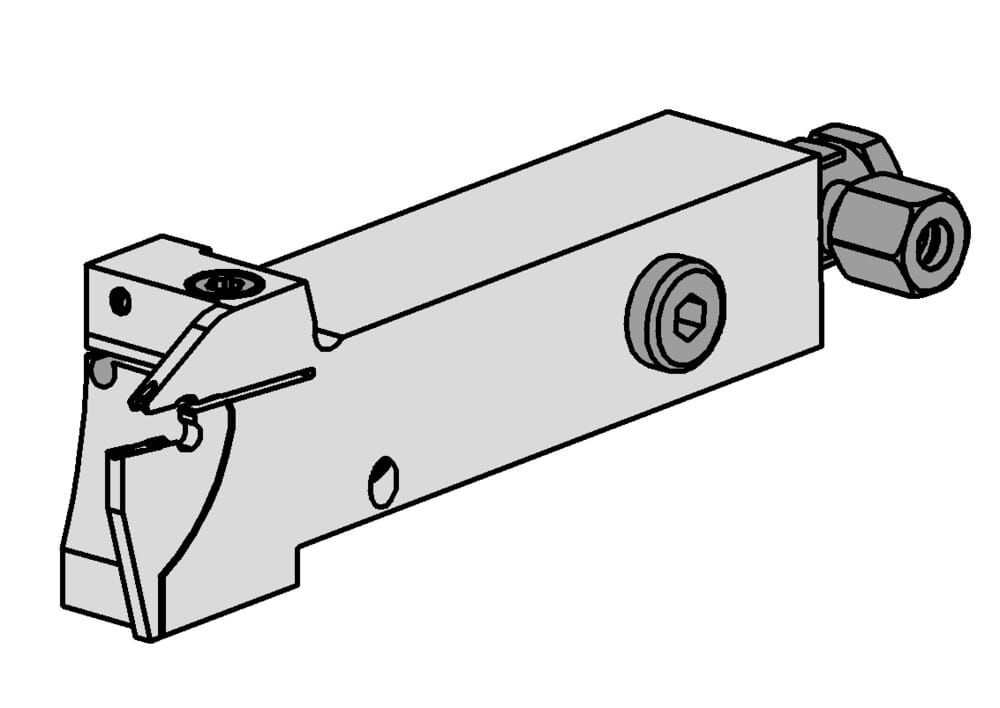

HORN Toolholder RH100.2525.0.23.IK for Turning
Please note:Technical instructions

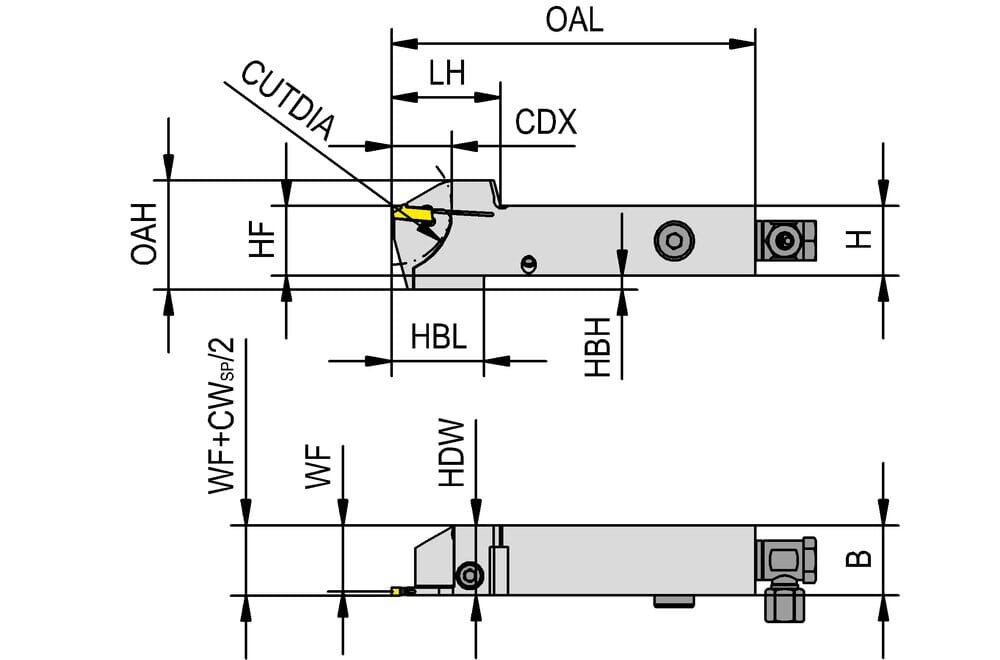

Head underbuild length (HBL)
33 mm
Head base height (HBH)
5 mm
Funktional width (WF)
23.65 mm
Overall length (OAL)
150 mm
Overall heigth (OAH)
39 mm
Head length (LH)
39 mm
Functional height (HF)
25 mm
Shank height (H)
25 mm
Work piece parting diameter maximum (CUTDIA)
42 mm
Cutting depth maximum (CDX)
21.5 mm
Shank width (B)
25 mm
Downloads
RH100_2525_0_23_IK-STP.STP Download
RH100_2525_0_23_IK-ISO.XML Download
RH100_2525_0_23_IK-DIN.XML Download
RH100_2525_0_23_IK-DXF.DXF Download
Download all files
