SH117.0032.2.16.IK

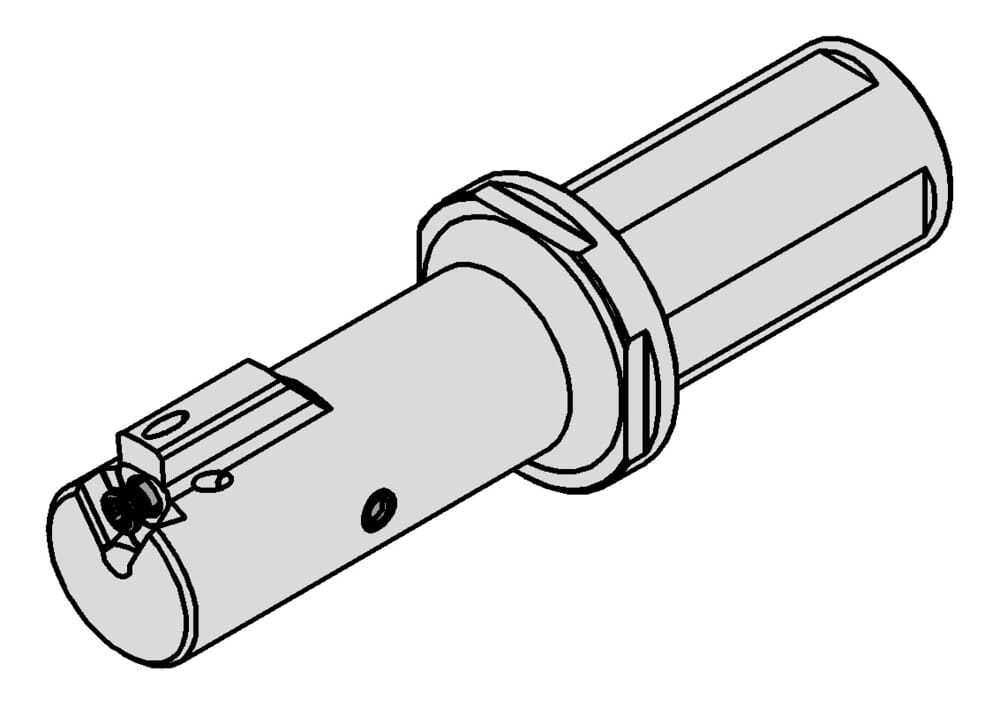

Broaching tool holder coolant through

Part number SH1170032216IK

HORN Broaching tool holder coolant through SH117.0032.2.16.IK for Broaching

Please note:Technical instructions

DIN_CCTWS

HORN-117D61050N

Form (Form)

ISO_CCTMS

ZYL24G3200$$$$

DIN_CCTMS

ZYL03202415

Katalog_CCTWS

117D605

Outcropping, neck, working length (l2)

75 mm

ISO_CCTWS

HORN117D61050N$$$$$

Clamping, shank diameter (d)

32 mm

Minimum drilling diameter (Dmin)

38 mm

Length from bore (l)

88 mm

Height clamping surface(s) (h)

30 mm

Total length (including cutting insert) (l1)

148 mm

Adjustment dimension center to cutting edge (f1)

22 mm
