SH117.1725.1.10.IK

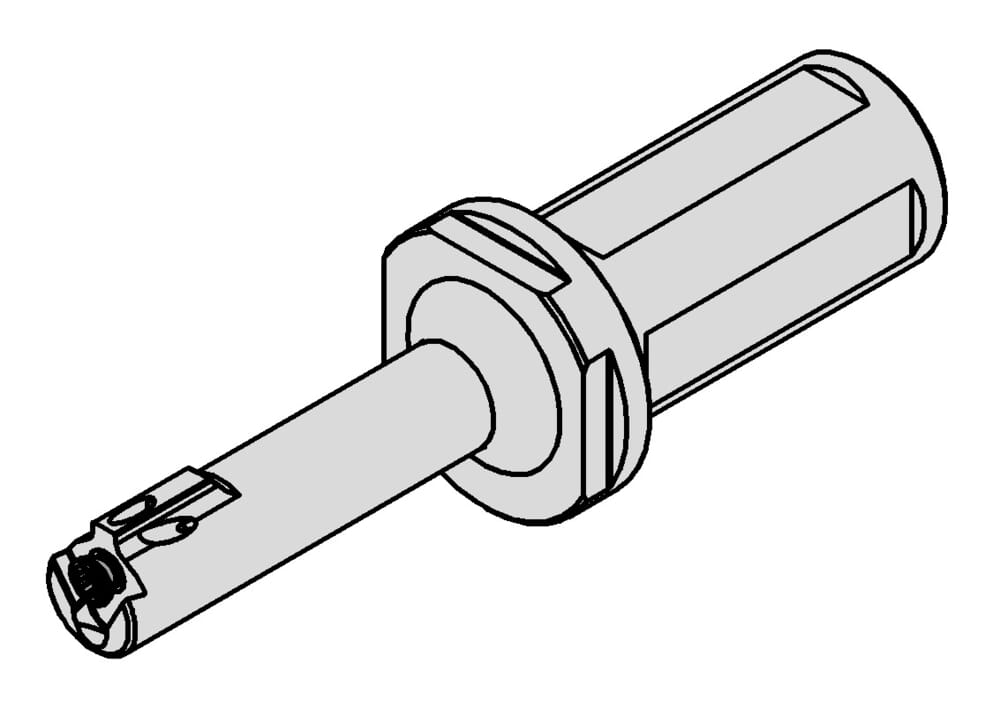

Broaching tool holder coolant through

Part number SH1171725110IK

HORN Broaching tool holder coolant through SH117.1725.1.10.IK for Broaching

Please note:Technical instructions

DIN_CCTWS

HORN-117A01050N

Form (Form)

ISO_CCTMS

ZYL24G2500$$$$

DIN_CCTMS

ZYL02502415

Katalog_CCTWS

117A005

Outcropping, neck, working length (l2)

40 mm

ISO_CCTWS

HORN117A01050N$$$$$

Clamping, shank diameter (d)

25 mm

Minimum drilling diameter (Dmin)

17 mm

Length from bore (l)

53 mm

Height clamping surface(s) (h)

23 mm

Total length (including cutting insert) (l1)

103 mm

Adjustment dimension center to cutting edge (f1)

9.5 mm
