SH117.1725.5.10.IK
Toolholder
Part number SH1171725510IK

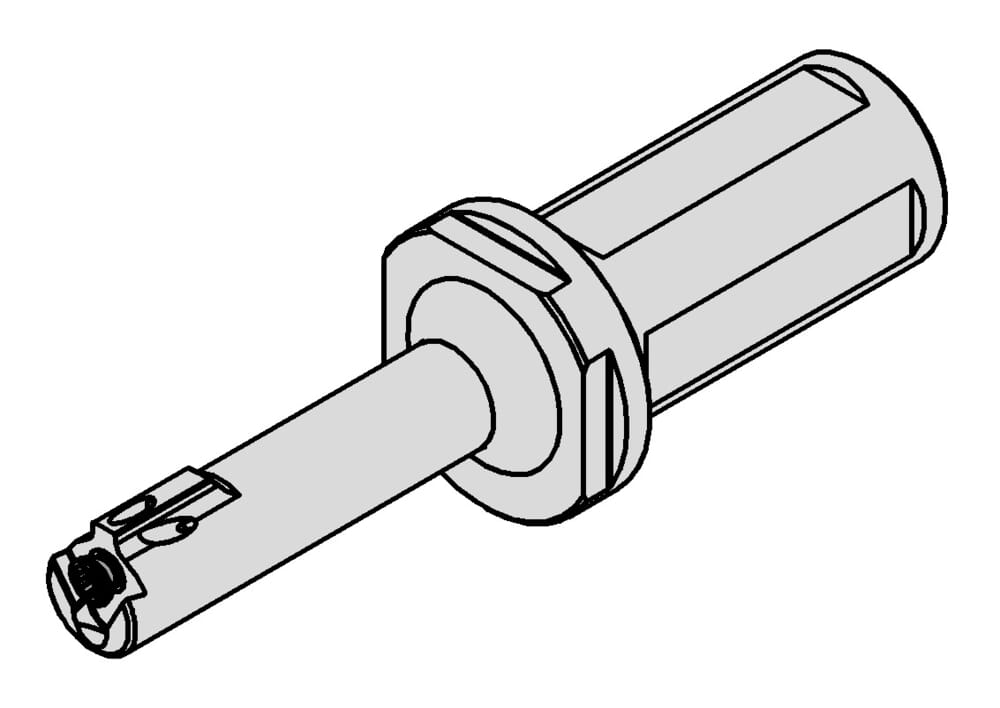

HORN Toolholder SH117.1725.5.10.IK for Broaching
Please note:Technical instructions
Minimum drilling diameter (Dmin)
17 mm
Form (Form)
A
ISOCCTMS
ZYL24G2500$$$$
DIN_CCTMS
ZYL02502415
Katalog_CCTWS
117A005
DIN_CCTWS
HORN-117A01050N
ISOCCTWS
HORN117A01050N$$$$$
Clamping, shank diameter (d)
25 mm
Length from bore (l)
113 mm
Height clamping surface(s) (h)
23 mm
Total length (including cutting insert) (l1)
163 mm
Adjustment dimension center to cutting edge (f1)
9.5 mm
Outcropping, neck, working length (l2)
100 mm
| Downloads | |
|---|---|
| SH117_1725_5_10_IK-DXF.DXF | Download |
| SH117_1725_5_10_IK-STP.STP | Download |
| SH117_1725_5_10_IK-ISO.XML | Download |
| SH117_1725_5_10_IK-DIN.XML | Download |
| Download all files | |
