SH117.4032.3.16.IK

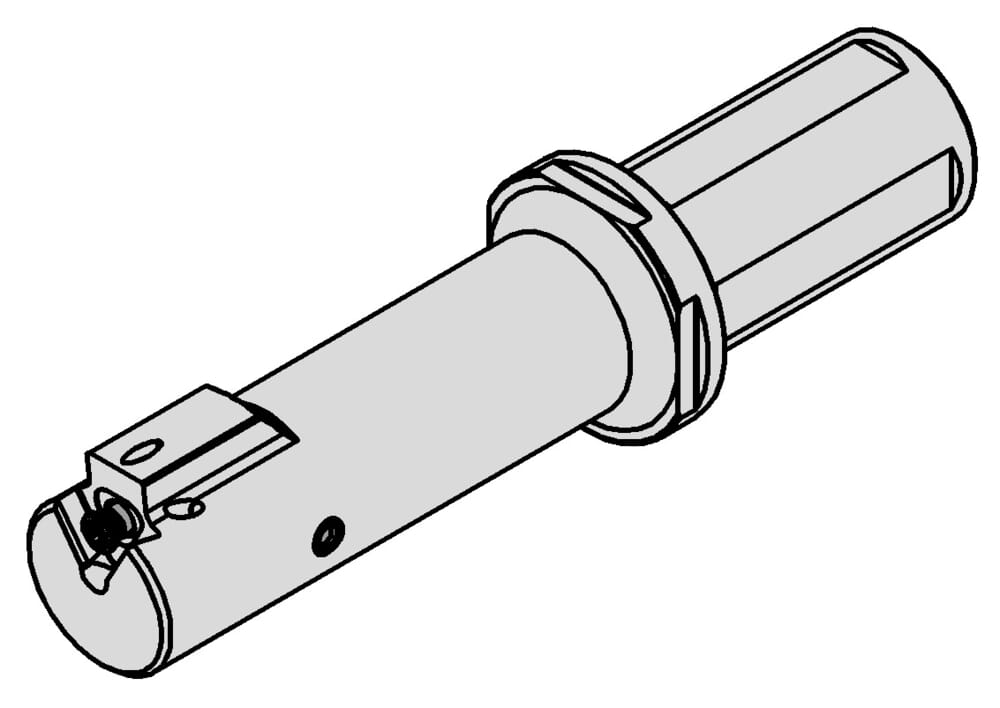

Broaching tool holder coolant through
Part number SH1174032316IK
HORN Broaching tool holder coolant through SH117.4032.3.16.IK for Broaching
Please note:Technical instructions
ISO_CCTWS
HORN117E61050N$$$$$
Form (Form)
E
ISO_CCTMS
ZYL24G3200$$$$
DIN_CCTMS
ZYL03202415
Katalog_CCTWS
117E605
DIN_CCTWS
HORN-117E61050N
Outcropping, neck, working length (l2)
100 mm
eclass-shortcut
21-18-20-11
Clamping, shank diameter (d)
32 mm
Minimum drilling diameter (Dmin)
40 mm
Length from bore (l)
113 mm
Height clamping surface(s) (h)
30 mm
Total length (including cutting insert) (l1)
173 mm
Adjustment dimension center to cutting edge (f1)
21.5 mm
| Downloads | |
|---|---|
| SH117_4032_3_16_IK-DXF.DXF | Download |
| SH117_4032_3_16_IK-STP.STP | Download |
| SH117_4032_3_16_IK-ISO.XML | Download |
| SH117_4032_3_16_IK-DIN.XML | Download |
| Download all files | |
