H100.2603.03
Toolholders
Part number H100260303

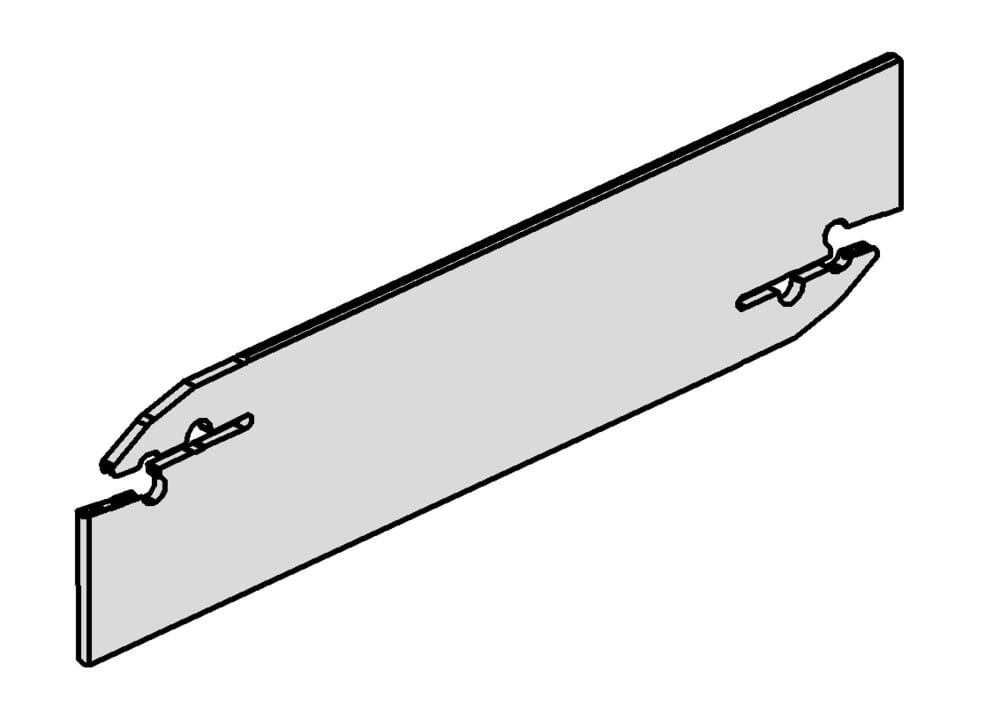

HORN Toolholders H100.2603.03 for Turning
Please note:Technical instructions
Plating seat size (Größe)
3
ISO_CCTMS
PMU01C0260$$$$
DIN_CCTMS
PMU02600105
Katalog_CCTWS
100038
DIN_CCTWS
HORN-100030058N
ISO_CCTWS
HORN100030058N$$$$$
clamping-range-max-met
2.8 mm
eclass-shortcut
21-18-10-04

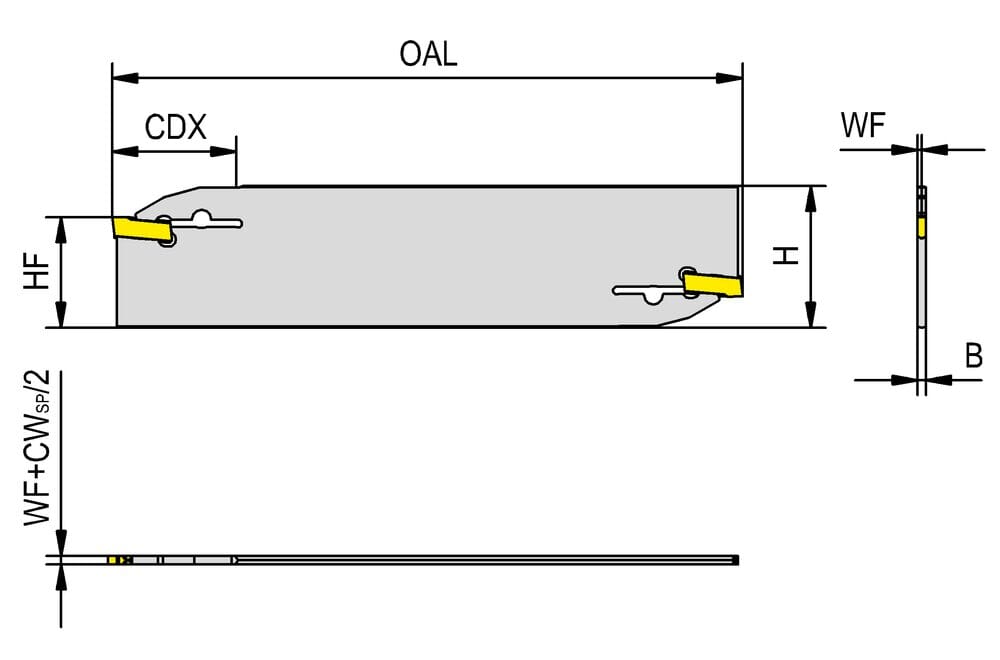

Peak height (h1)
21.4 mm
Maximum insertion depth (tmax)
37.5 mm
Head height (h)
26 mm
Total length (including cutting insert) (l1)
110 mm
Adjustment dimension (f1)
1.15 mm
Width / thickness sword (b)
2.3 mm
| Downloads | |
|---|---|
| H100_2603_03-DXF.DXF | Download |
| H100_2603_03-STP.STP | Download |
| H100_2603_03-ISO.XML | Download |
| H100_2603_03-DIN.XML | Download |
| Download all files | |
