R108.0006.12 TN35
Inserts
Part number R108000612TN35

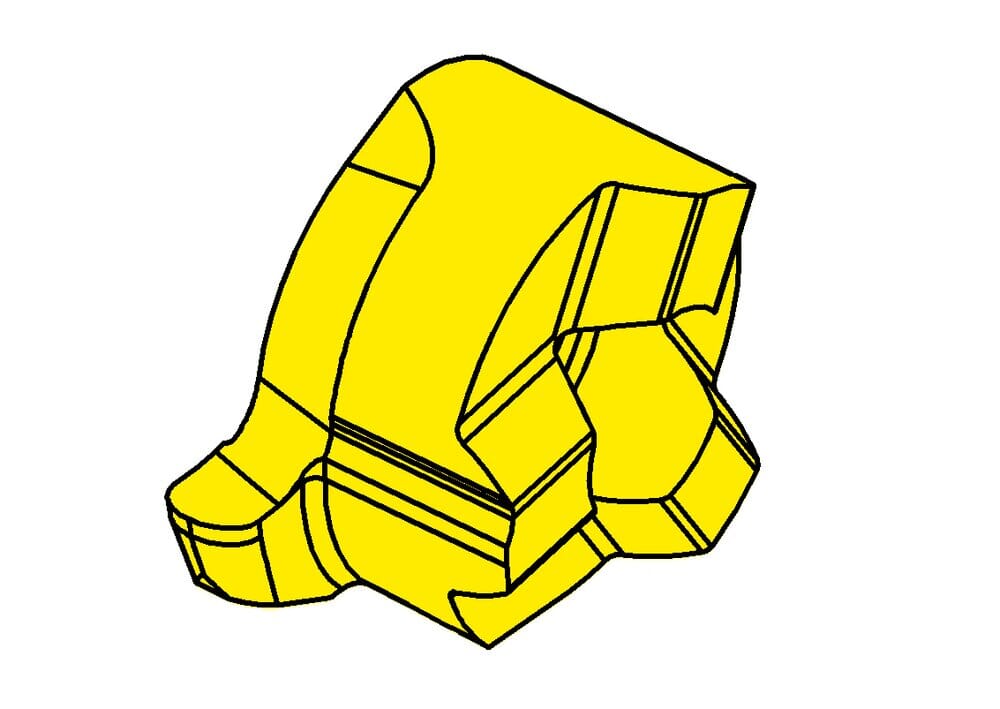

HORN Inserts R108.0006.12 TN35 for Turning
Please note:Technical instructions
Cutting edge count (CEDC)
1
Funktional width (WF)
4.8 mm
Corner radius (RE)
0.6 mm
Functional length (LF)
3.2 mm
Insert length (INSL)
7.8 mm
Minimum bore diameter (DMIN)
8 mm
Cutting width (CW)
1.215 mm
Cutting depth maximum (CDX)
1 mm
Body diameter (BD)
6 mm
| Downloads | |
|---|---|
| R108_0006_12_TN35-DXF.DXF | Download |
| R108_0006_12_TN35-STP.STP | Download |
| R108_0006_12_TN35-ISO.XML | Download |
| R108_0006_12_TN35-DIN.XML | Download |
| Download all files | |
