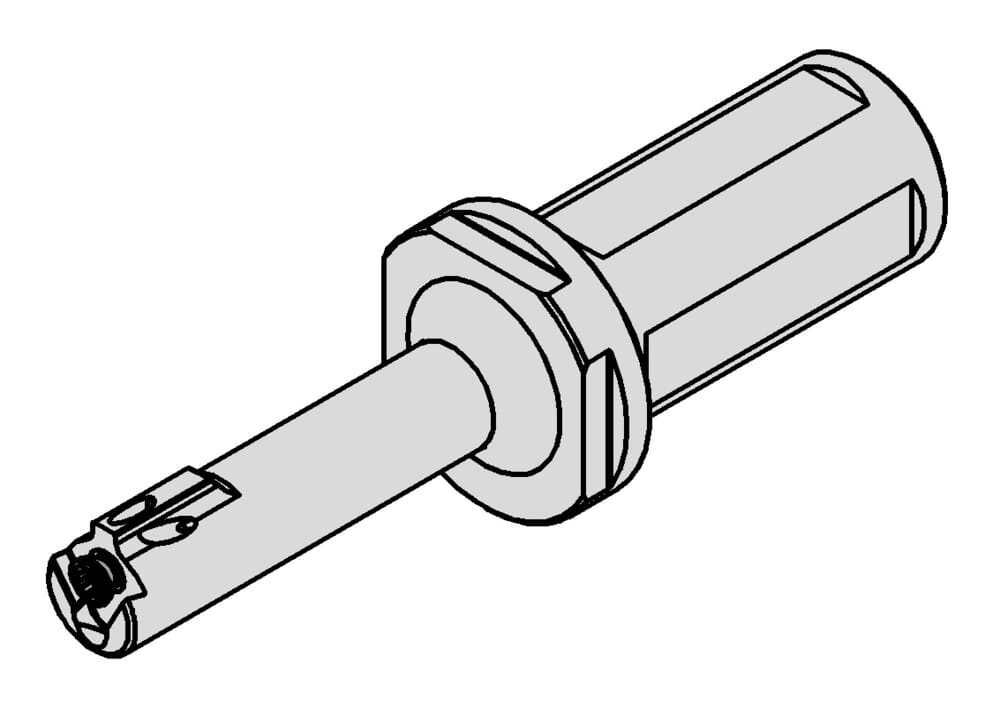

SH117.1425.1.3.08.IK
Broaching tool holder coolant through
Part number SH11714251308IK
HORN Broaching tool holder coolant through SH117.1425.1.3.08.IK for Broaching
Please note:Technical instructions
Katalog_CCTWS
117G805
eclass-shortcut
21-18-10-90
Form (Form)
G
ISO_CCTMS
ZYL24G2500$$$$
DIN_CCTMS
ZYL02502415
Outcropping, neck, working length (l2)
20 mm
DIN_CCTWS
HORN-117G81050N
ISO_CCTWS
HORN117G81050N$$$$$
Clamping, shank diameter (d)
25 mm
Minimum drilling diameter (Dmin)
14 mm
Length from bore (l)
32 mm
Height clamping surface(s) (h)
23 mm
Total length (including cutting insert) (l1)
82 mm
Adjustment dimension center to cutting edge (f1)
9.6 mm
| Downloads | |
|---|---|
| SH117_1425_1_3_08_IK-DXF.DXF | Download |
| SH117_1425_1_3_08_IK-STP.STP | Download |
| SH117_1425_1_3_08_IK-ISO.XML | Download |
| SH117_1425_1_3_08_IK-DIN.XML | Download |
| Download all files | |
