SH117.0025.4.10.IK
Toolholder
Part number SH1170025410IK

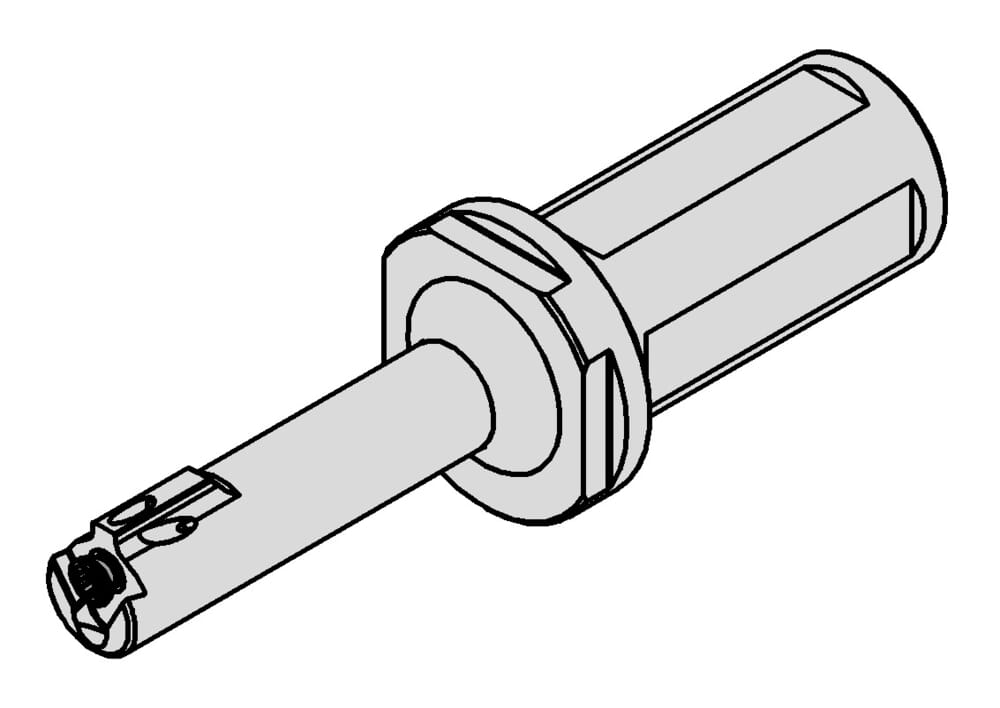

HORN Toolholder SH117.0025.4.10.IK for Broaching
Please note:Technical instructions
Minimum drilling diameter (Dmin)
22 mm
Form (Form)
B
ISOCCTMS
ZYL24G2500$$$$
DIN_CCTMS
ZYL02502415
Katalog_CCTWS
117B005
DIN_CCTWS
HORN-117B01050N
ISOCCTWS
HORN117B01050N$$$$$
Clamping, shank diameter (d)
25 mm
Length from bore (l)
123 mm
Height clamping surface(s) (h)
23 mm
Total length (including cutting insert) (l1)
173 mm
Adjustment dimension center to cutting edge (f1)
12 mm
Outcropping, neck, working length (l2)
110 mm
| Downloads | |
|---|---|
| SH117_0025_4_10_IK-DXF.DXF | Download |
| SH117_0025_4_10_IK-STP.STP | Download |
| SH117_0025_4_10_IK-ISO.XML | Download |
| SH117_0025_4_10_IK-DIN.XML | Download |
| Download all files | |
