S117.2002.05.20.B1 AN45
insert
Part number S11720020520B1AN45

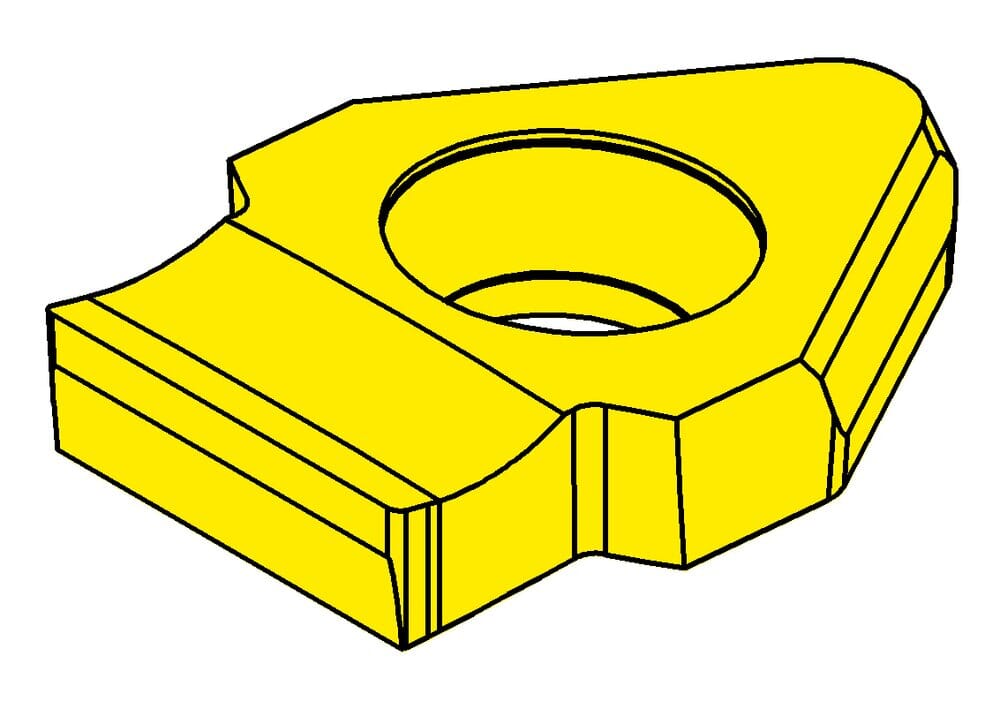

HORN insert S117.2002.05.20.B1 AN45 for Broaching
Please note:Technical instructions
Cutting width (w)
20.02 mm
Smallest bore diameter (Dmin)
50 mm
Total length (l)
28.6 mm
Corner radius (r)
0.5 mm
Nominal range (Nw)
20 mm
Form (Form)
I
Katalog_SSC
117I005
ISOSSC
HORN117I01050N$$$$$
eclass-shortcut
21-18-20-11
Cutting insert center from the middle (f)
15.6 mm
Maximum depth of groove (tmax)
8.5 mm
| Downloads | |
|---|---|
| S117_2002_05_20_B1_AN45-DXF.DXF | Download |
| S117_2002_05_20_B1_AN45-STP.STP | Download |
| S117_2002_05_20_B1_AN45-ISO.XML | Download |
| S117_2002_05_20_B1_AN45-DIN.XML | Download |
| Download all files | |
