S100.0250.3V2 IG35
Insert
Part number S10002503V2IG35

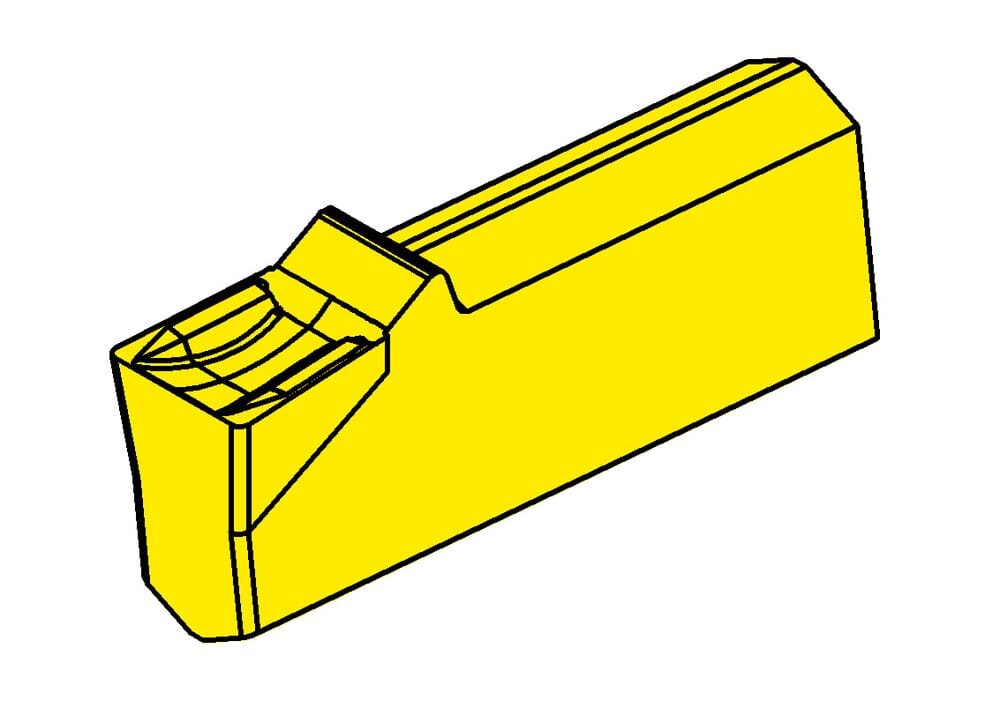

HORN Insert S100.0250.3V2 IG35 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-11
ISO_SSC
HORN100020058N$$$$$
Katalog_SSC
100028
Plating seat size (Größe)
2

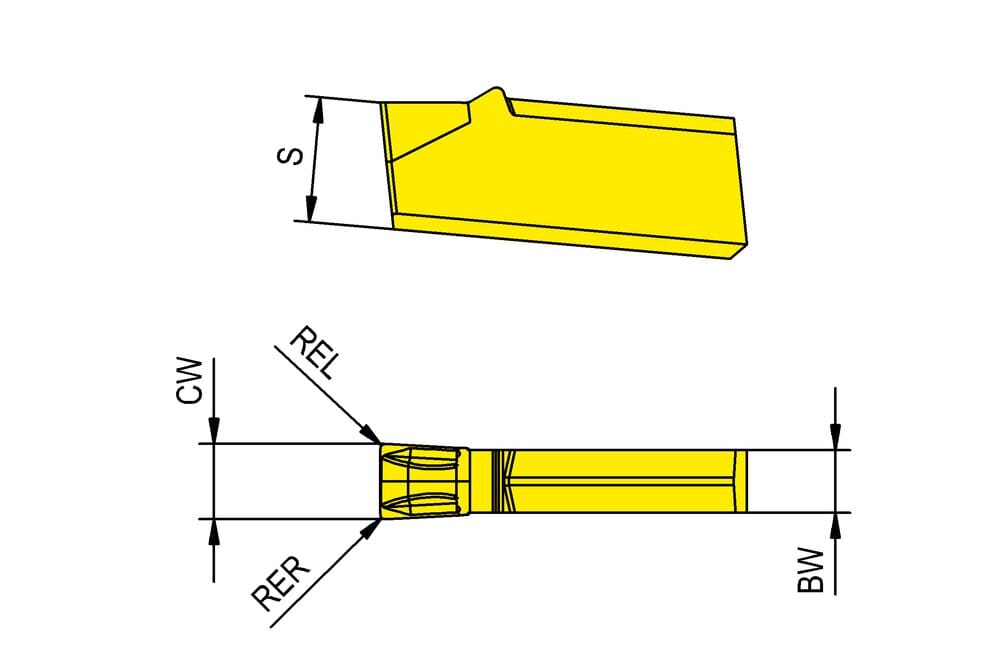

Width of groove (w)
2.5 mm
Corner radius (r)
0.2 mm
| Downloads | |
|---|---|
| S100_0250_3V2_IG35-DXF.DXF | Download |
| S100_0250_3V2_IG35-STP.STP | Download |
| S100_0250_3V2_IG35-ISO.XML | Download |
| S100_0250_3V2_IG35-DIN.XML | Download |
| Download all files | |
