SH117.3032.3.16.IK

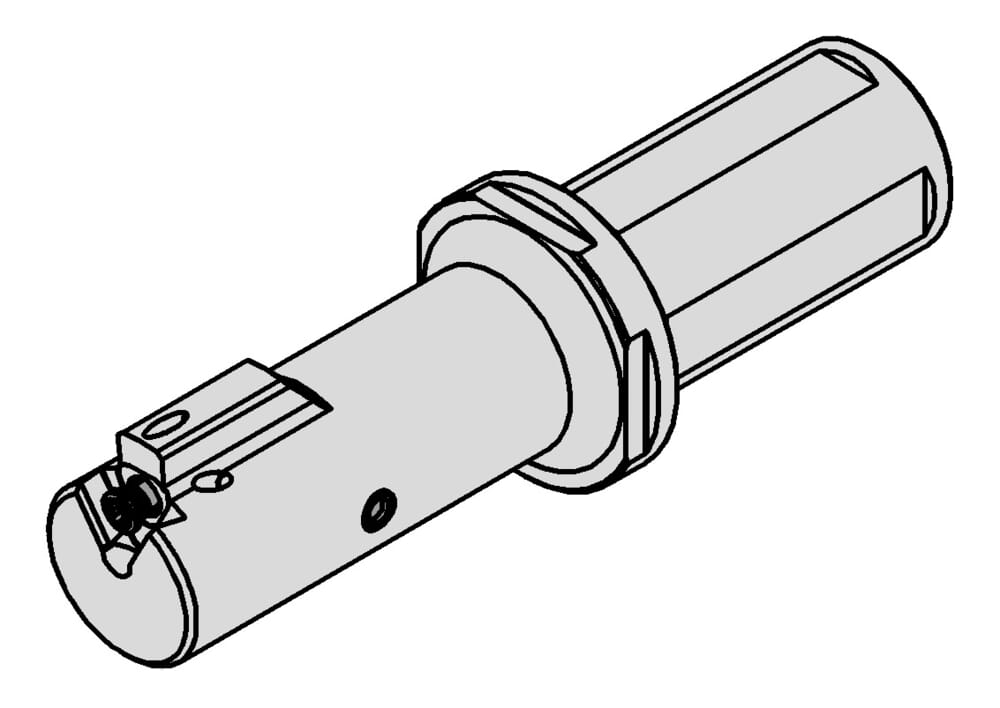

Broaching tool holder coolant through

Part number SH1173032316IK

HORN Broaching tool holder coolant through SH117.3032.3.16.IK for Broaching

Clamping, shank diameter (d)

32 mm

Form (Form)

ISOCCTMS

ZYL24G3200$$$$

DIN_CCTMS

ZYL03202415

Katalog_CCTWS

117C605

DIN_CCTWS

HORN-117C61050N

ISOCCTWS

HORN117C61050N$$$$$

eclass-shortcut

21-18-10-90

Minimum drilling diameter (Dmin)

30 mm

Length from bore (l)

113 mm

Height clamping surface(s) (h)

30 mm

Total length (including cutting insert) (l1)

173 mm

Adjustment dimension center to cutting edge (f1)

16.5 mm

Outcropping, neck, working length (l2)

100 mm

Toolholder

SH1175040420IK
