R108.0510.01 MG12
Inserts
Part number R108051001MG12
HORN Inserts R108.0510.01 MG12 for Gewinden
Please note:Technical instructions

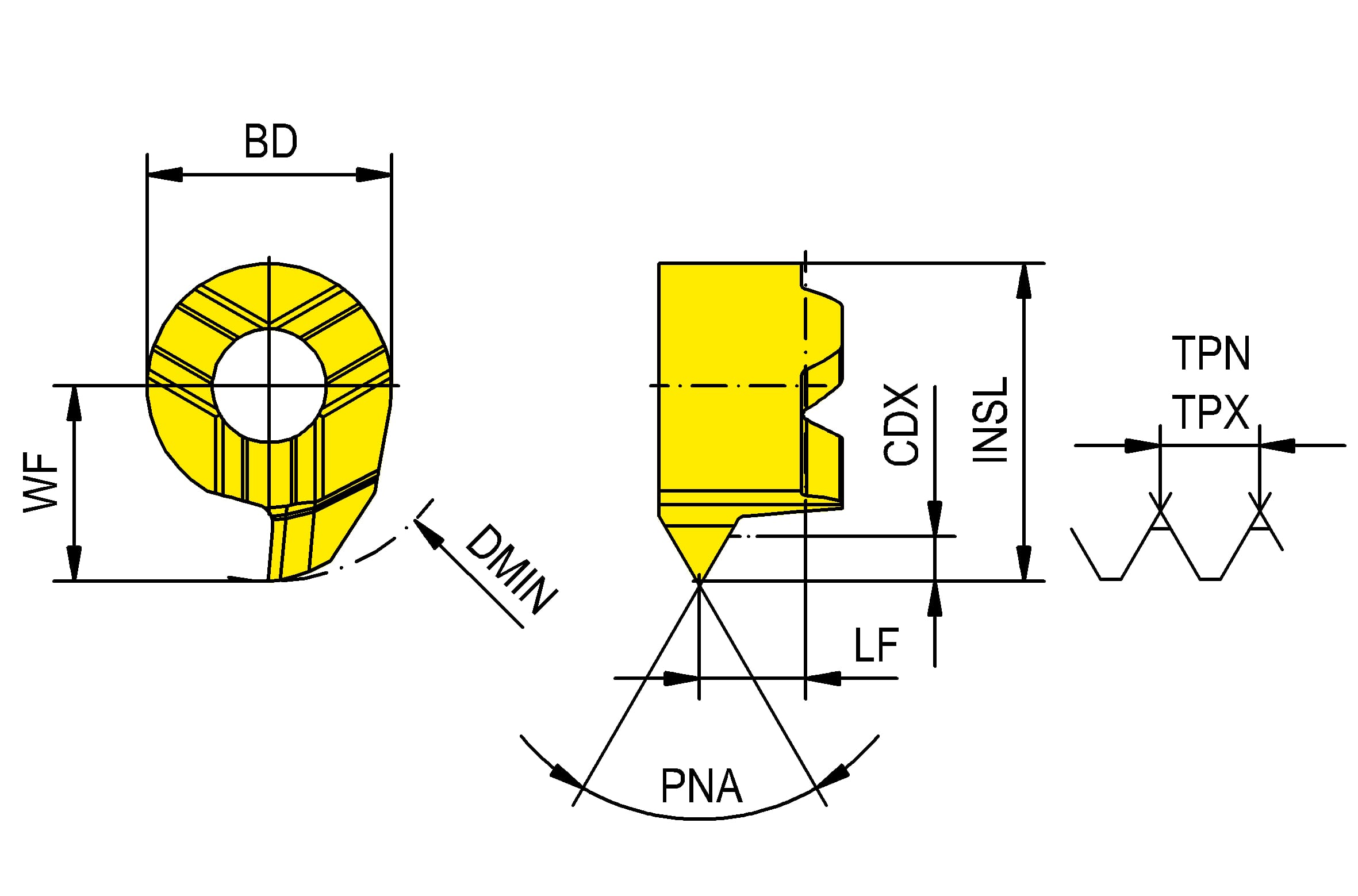

Cutting edge count (CEDC)
1
Profile included angle (PNA)
60 °
Funktional width (WF)
4.8 mm
Thred pitch maximum (TPX)
1.25 mm
Thread pitch minimum (TPN)
1 mm
Functional length (LF)
2.8 mm
Insert length (INSL)
7.8 mm
Minimum bore diameter (DMIN)
8 mm
Cutting depth maximum (CDX)
0.7 mm
Body diameter (BD)
6 mm
| Downloads | |
|---|---|
| R108_0510_01_MG12-DIN.XML | Download |
| R108_0510_01_MG12-DXF.DXF | Download |
| R108_0510_01_MG12-STP.STP | Download |
| R108_0510_01_MG12-ISO.XML | Download |
| Download all files | |
