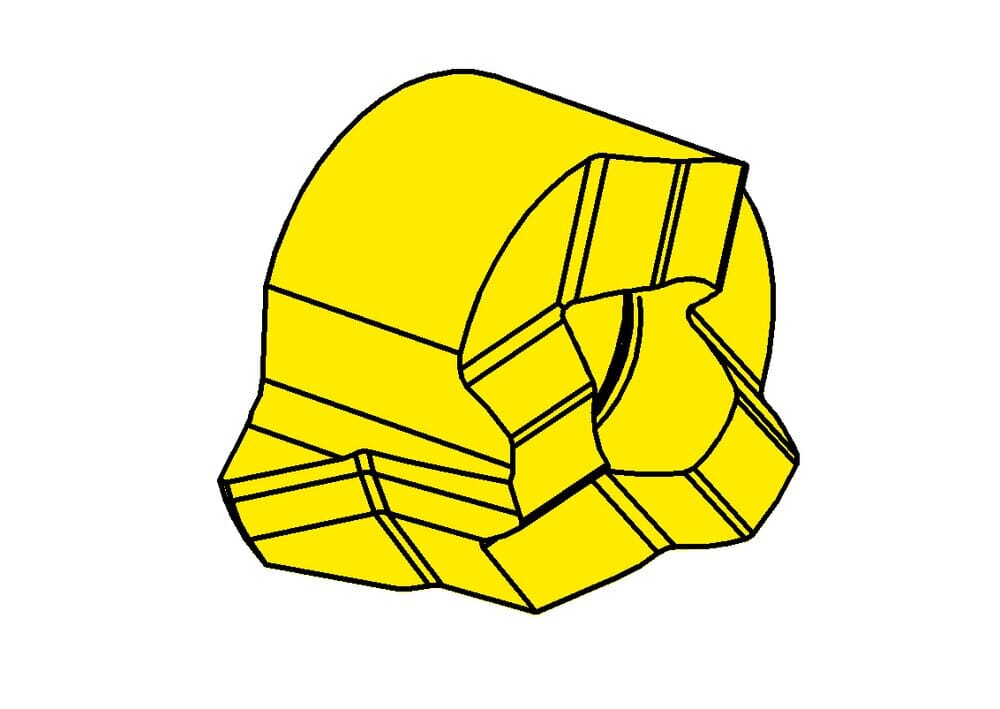

R108.0815.01 MG12
Inserts
Part number R108081501MG12
HORN Inserts R108.0815.01 MG12 for Gewinden
Please note:Technical instructions
Cutting edge count (CEDC)
1
Profile included angle (PNA)
60 °
Funktional width (WF)
4.8 mm
Thred pitch maximum (TPX)
1.75 mm
Thread pitch minimum (TPN)
1.5 mm
Functional length (LF)
2.6 mm
Insert length (INSL)
7.8 mm
Minimum bore diameter (DMIN)
8 mm
Cutting depth maximum (CDX)
1 mm
Body diameter (BD)
6 mm
| Downloads | |
|---|---|
| R108_0815_01_MG12-STP.STP | Download |
| R108_0815_01_MG12-ISO.XML | Download |
| R108_0815_01_MG12-DIN.XML | Download |
| R108_0815_01_MG12-DXF.DXF | Download |
| Download all files | |
