SH117.5040.3.20.IK
Toolholder
Part number SH1175040320IK

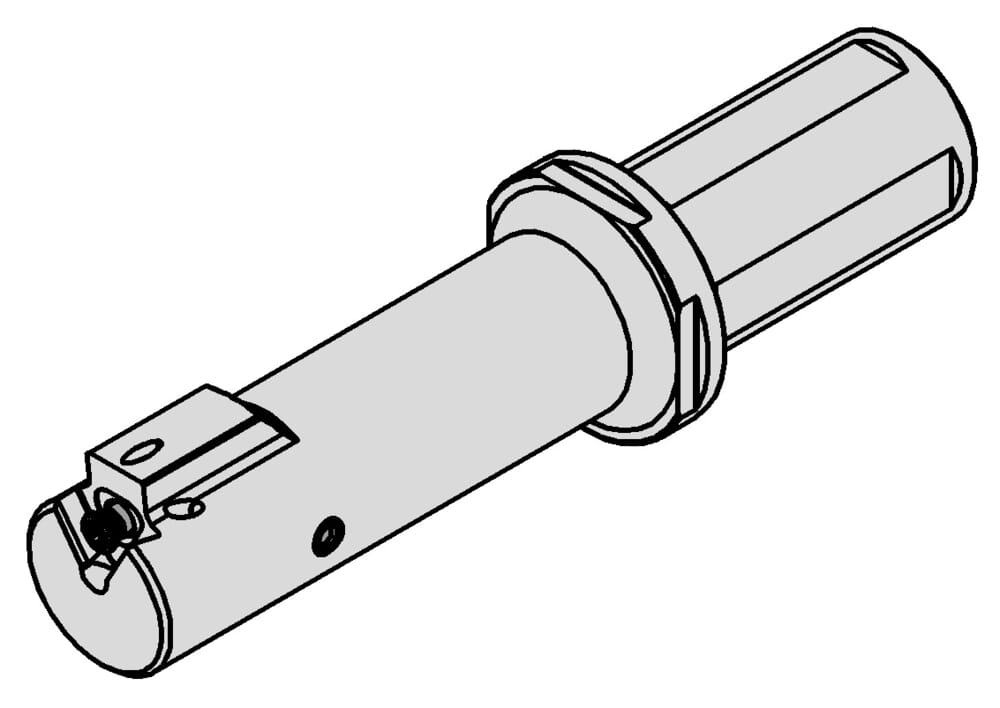

HORN Toolholder SH117.5040.3.20.IK for Broaching
Please note:Technical instructions
Clamping, shank diameter (d)
40 mm
Form (Form)
I
ISOCCTMS
ZYL24G4000$$$$
DIN_CCTMS
ZYL04002415
Katalog_CCTWS
117I005
DIN_CCTWS
HORN-117I01050N
ISOCCTWS
HORN117I01050N$$$$$
eclass-shortcut
21-18-10-90
Minimum drilling diameter (Dmin)
50 mm
Length from bore (l)
165 mm
Height clamping surface(s) (h)
38 mm
Total length (including cutting insert) (l1)
225 mm
Adjustment dimension center to cutting edge (f1)
26.5 mm
Outcropping, neck, working length (l2)
150 mm
| Downloads | |
|---|---|
| SH117_5040_3_20_IK-DXF.DXF | Download |
| SH117_5040_3_20_IK-STP.STP | Download |
| SH117_5040_3_20_IK-ISO.XML | Download |
| SH117_5040_3_20_IK-DIN.XML | Download |
| Download all files | |
