S117.0397.01.08.B1 AN45

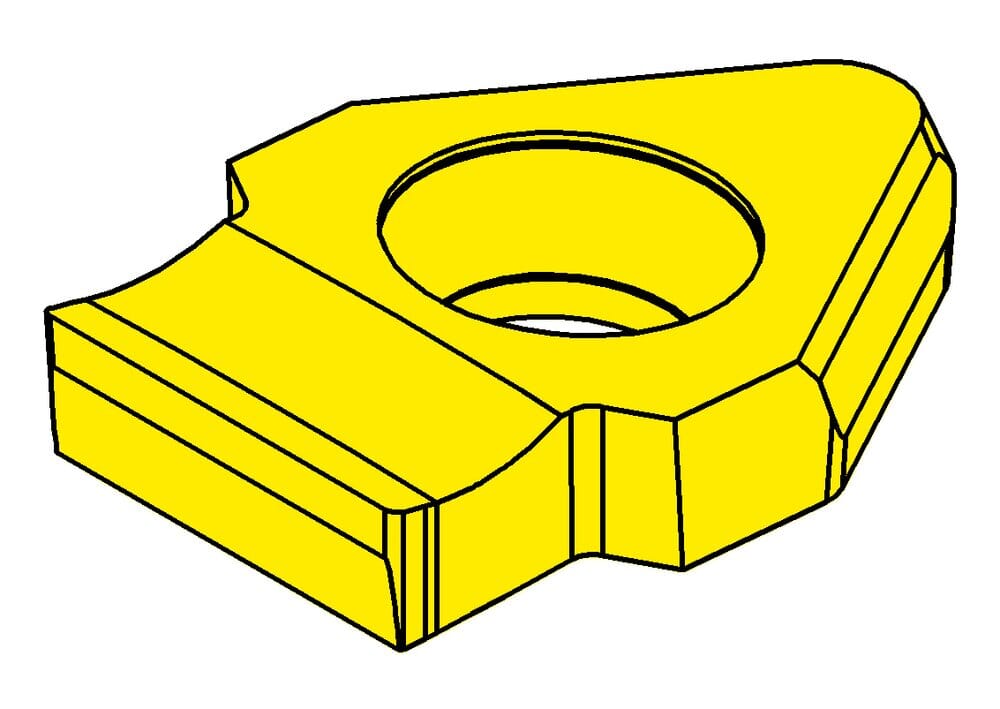

117 style broach insert - B1 geometry

Part number S11703970108B1AN45

HORN 117 style broach insert - B1 geometry S117.0397.01.08.B1 AN45 for Broaching

Form (Form)

Smallest bore diameter (Dmin)

14 mm

Total length (l)

13 mm

Corner radius (r)

0.12 mm

Nominal range (Nw)

4 mm

Maximum depth of groove (tmax)

2.2 mm

Katalog_SSC

117F805

ISO_SSC

HORN117F81050N$$$$$

Cutting width (w)

3.98 mm

eclass-shortcut

21-18-20-11

Cutting insert center from the middle (f)

6 mm
