S117.0412.05.08.B1 AN45

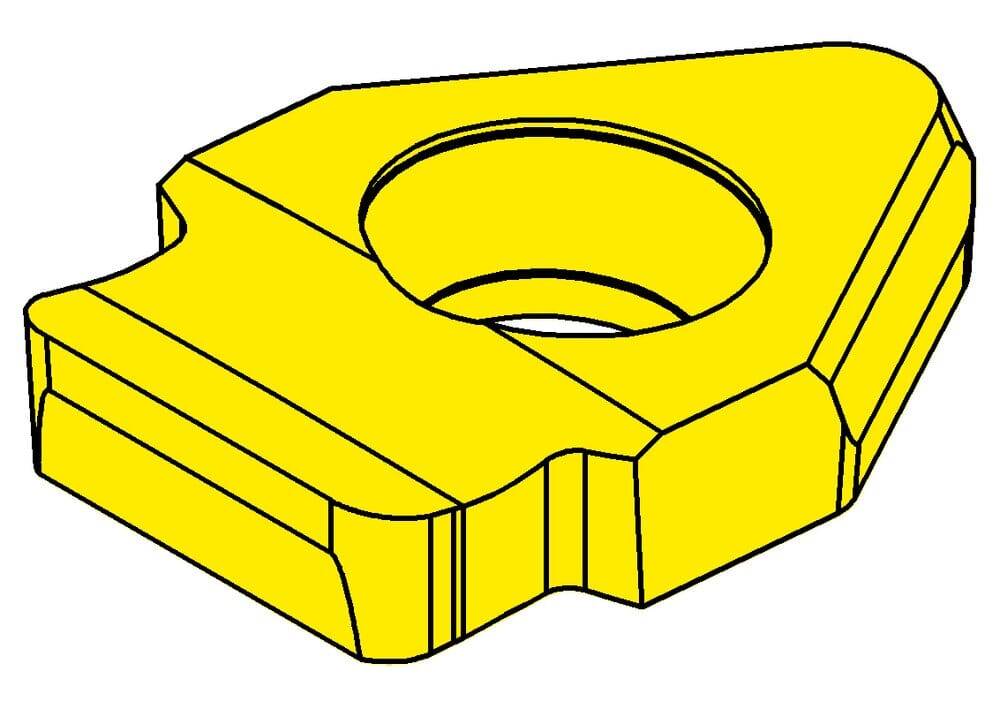

117 style broach insert - B1 geometry

Part number S11704120508B1AN45

HORN 117 style broach insert - B1 geometry S117.0412.05.08.B1 AN45 for Broaching

Cutting width (w)

4.12 mm

Smallest bore diameter (Dmin)

14 mm

Total length (l)

13 mm

Corner radius (r)

0.5 mm

Nominal range (Nw)

4 mm

Form (Form)

Katalog_SSC

117F805

ISOSSC

HORN117F81050N$$$$$

eclass-shortcut

21-18-20-11

Cutting insert center from the middle (f)

6 mm

Maximum depth of groove (tmax)

2.1 mm
