SH117.5040.2.20.IK
Toolholder
Part number SH1175040220IK

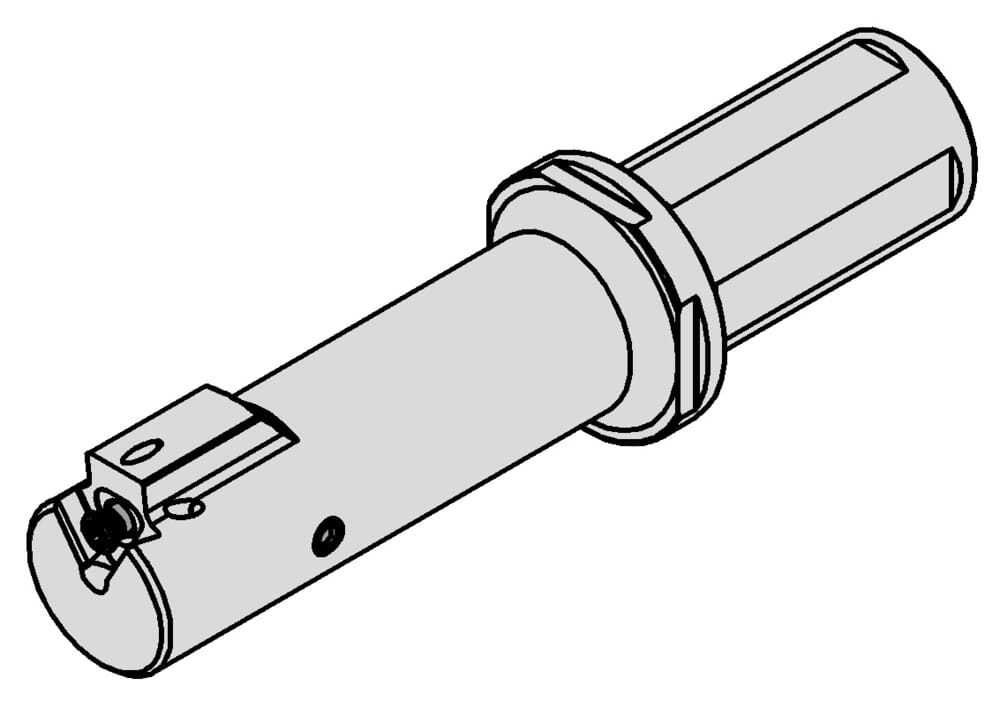

HORN Toolholder SH117.5040.2.20.IK for Broaching
Please note:Technical instructions
Katalog_CCTWS
117I005
eclass-shortcut
21-18-10-90
Form (Form)
I
ISO_CCTMS
ZYL24G4000$$$$
DIN_CCTMS
ZYL04002415
Outcropping, neck, working length (l2)
100 mm
DIN_CCTWS
HORN-117I01050N
ISO_CCTWS
HORN117I01050N$$$$$
Clamping, shank diameter (d)
40 mm
Minimum drilling diameter (Dmin)
50 mm
Length from bore (l)
115 mm
Height clamping surface(s) (h)
38 mm
Total length (including cutting insert) (l1)
175 mm
Adjustment dimension center to cutting edge (f1)
26.5 mm
| Downloads | |
|---|---|
| SH1175040220IK_20230116_121518870.STP | Download |
| SH1175040220IK.DXF | Download |
| Download all files | |
