306.0815.01 TN35
Inserts
Part number 306081501TN35

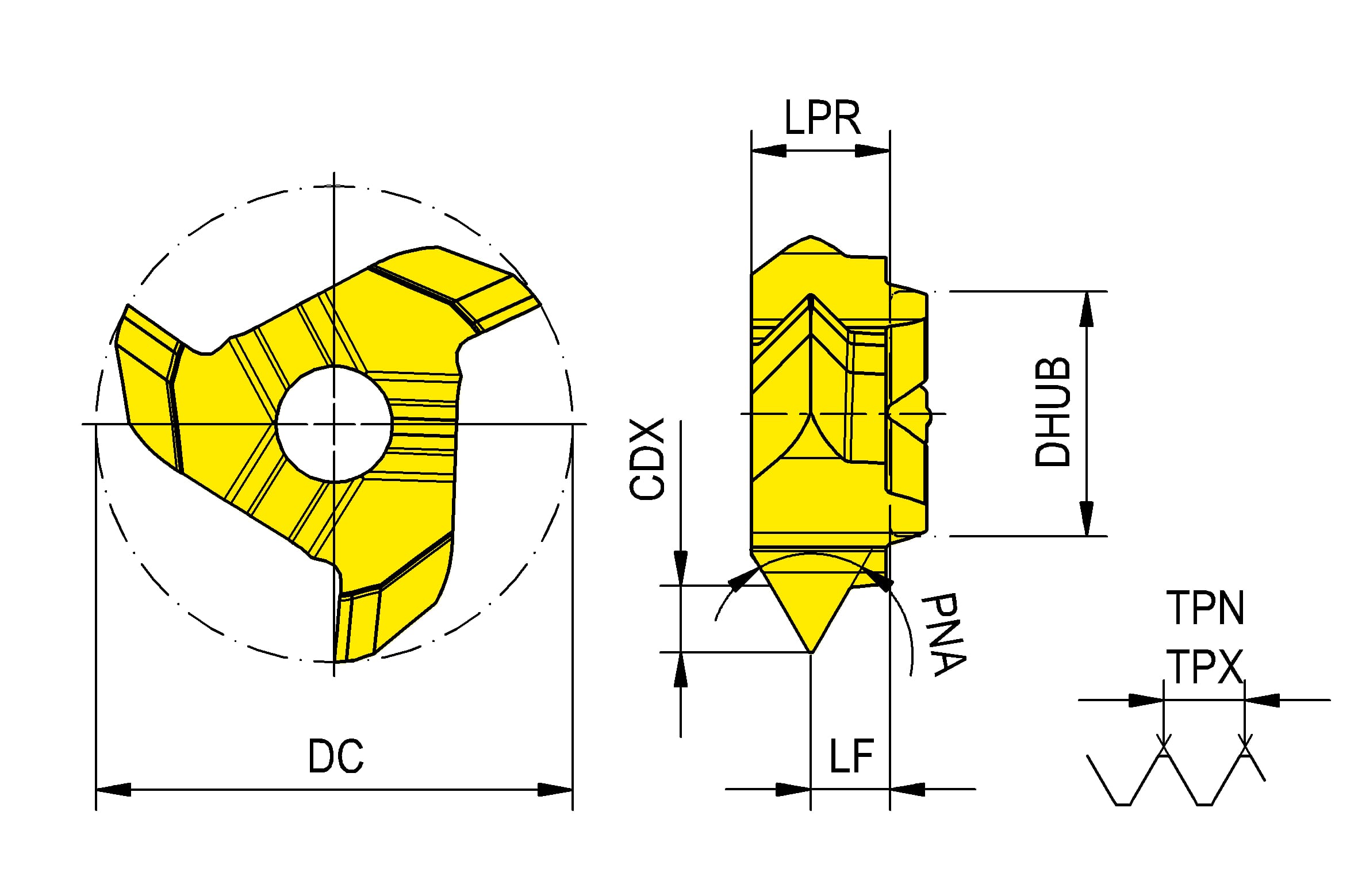

HORN Inserts 306.0815.01 TN35 for Gewinden
Please note:Technical instructions
Profile included angle (PNA)
60 °
Thred pitch maximum (TPX)
1.5 mm
Thread pitch minimum (TPN)
1.5 mm
Protruding length (LPR)
3.4 mm
Functional length (LF)
2.25 mm
hub diameter (DHUB)
6 mm
Cutting diameter (DC)
11.7 mm
Cutting depth maximum (CDX)
1 mm
| Downloads | |
|---|---|
| 306_0815_01_TN35-ISO.XML | Download |
| 306_0815_01_TN35-DXF.DXF | Download |
| 306_0815_01_TN35-STP.STP | Download |
| 306_0815_01_TN35-DIN.XML | Download |
